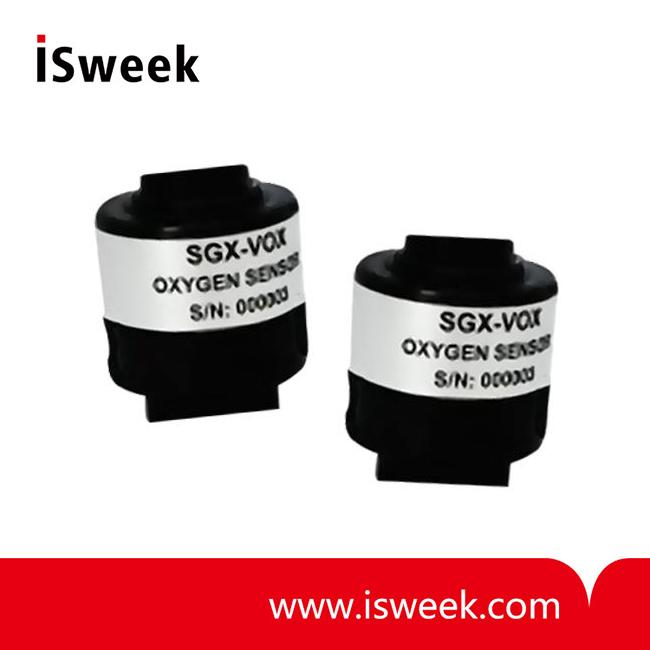

Oxygen Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

Price

Price on request ≥1piece
Model Number

SGX-VOX
Data Sheet
Package

Original packaging
Specs

SGX-VOX
Quantity

- +
Send Inquiry
Share

Find Similar Products

Oxygen Analyzer

Model Number：OMD-625

MOQ：1
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor

Model Number：OKS-1

MOQ：1
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor

Model Number：OKS-2

MOQ：1
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor

Model Number：OKS-3

MOQ：1
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor

Model Number：OKS-4

MOQ：1
Medical Electrochemical Galvanic Fuel Cell Percent Oxygen Sensor

Model Number：OKS-10

MOQ：1

Product Description

PERFORMANCE

Output signal	9-13mV in Air*
Zero current (offset)	<0.1% O₂
T90 response time	< 5 seconds
T99.5 response time	<50 sec
Measurement Range	0-100% O₂
Linearity	Linear
Temp. Compensation（0-40℃）	< 2% O₂
Recommended Load Resistor	min 10k Ohms

* measured in standard temperature and pressure（20℃, 50%RH and 1atm）

OPERATING CONDITIONS

Temperature Range	-20℃ to +50℃
Pressure Range	500 to 2000 mbar
Operating Humidity Range	0% to 99% RH（non condensing）

LIFETIME

Long Term Output Drift	<5% per annum
Recommended Storage Temp	0℃ to 20℃
Expected Operating Life	375000% O₂hrs at 20℃

OUTLINE

All dimensions are in mm

All tolerances are ±0.15mm
