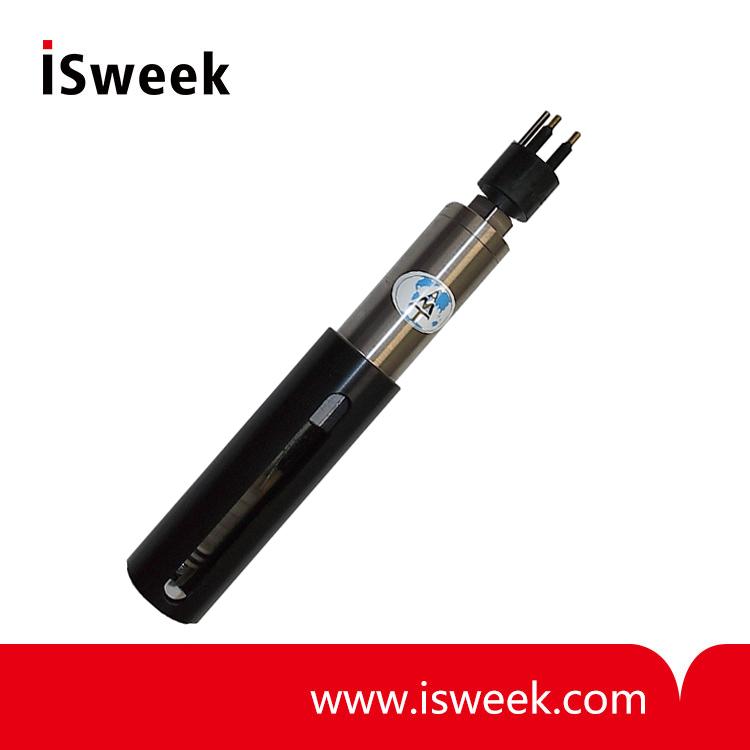

ORP-combined Shallow Water Sensor - OEM Version
-
Price
Price on request ≥1piece
-
Model Number
ORP -
Data Sheet
-
Package
Original packaging -
Specs
ORP -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description
ORP-combined Shallow Water Sensor - OEM Version
Platinum and reference electrode in one housing - for depths of up to 1,200 m
The ORP-combined shallow water sensor with integrated electronic device has been developed above all for interfacing with existing CTD probe systems. The sensor consists of a pressure balanced platinum electrode and a reference electrode (Ag/AgCl) in a plastic rod. It is equipped with a ceramic diaphragm containing a high number of pores. The electrolyte is a KCl containing gel without silver ions to allow also measurements in H2S and sulphide containing samples.
The ORP shallow water sensor is equipped with a titanium housing including the electronic device, with a plastics protection cage and a BH 4 M SUBCONN titanium connector. On own risk the protection cage could be screwed off. The sensor has to be calibrated by the customer itself (calibration on request). All electrodes are delivered with wetting cap containing pH 4 buffer/KCl and covering the measuring end.
ORP-combined Shallow Water Sensor Main features:
Platinum and reference electrode in one housing - for depths of up to 1,200 m
The ORP-combined shallow water sensor with integrated electronic device has been developed above all for interfacing with existing CTD probe systems. The sensor consists of a pressure balanced platinum electrode and a reference electrode (Ag/AgCl) in a plastic rod. It is equipped with a ceramic diaphragm containing a high number of pores. The electrolyte is a KCl containing gel without silver ions to allow also measurements in H2S and sulphide containing samples.
The ORP shallow water sensor is equipped with a titanium housing including the electronic device, with a plastics protection cage and a BH 4 M SUBCONN titanium connector. On own risk the protection cage could be screwed off. The sensor has to be calibrated by the customer itself (calibration on request). All electrodes are delivered with wetting cap containing pH 4 buffer/KCl and covering the measuring end.
ORP-combined Shallow Water Sensor Main features:
|
Measuring range |
+/- 2,000 mV |
|
Accuracy |
+/- 1 mV |
|
Resolution |
approx. 1 mV |
|
Pressure range |
up to 1,200 dbar |
|
Dimensions |
length over all: 240 mm diameters: max. 37 mm (with protection cage) |
|
Connector |
BH 4 M SUBCONN, titanium, others on request |
|
Output |
0 to 5 V DC (others on request) |
|
Input voltage |
9 to 30 V DC (not included) |
|
Response time |
1 second (63% of reading) |
