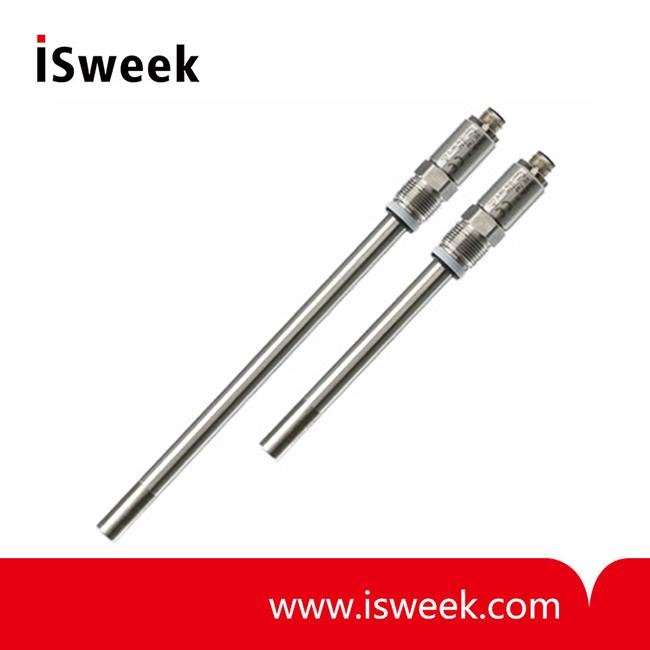

Optical Oxygen Sensor
-
Price
Price on request ≥1piece
-
Model Number
SE 740 -
Data Sheet
-
Package
Original packaging -
Specs
SE 740 -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description
Optical oxygen measurement based on fluorescence quenching technology
Flow-independent optical oxygen sensor with fast response. Ideal for measurements in demanding hygienic environments. Steam-sterilizable, autoclavable and CIP- capable.
SE 740 Optical Oxygen Sensor Applications
Food, pharmaceutics, fermentation and process
SE 740 Optical Oxygen Sensor Facts
- flow-independent measuring principle
- no polarization required
- replaceable sensor element
- integrated wear monitoring
- stainless steel 1.4435, Inspection Certificate 3.1, Ra < 0.4 μm
- gaskets conforming to FDA and USP VI
- temperature range: -10 ~ 130℃ measurements: 0 ~ 80℃
- pressure range: -1 ~ 12 bar
- measuring range: 0.05 ~ 300 % saturation
- reliable digital communication with Stratos Evo
SE 740 Optical Oxygen Sensor Specifications
|
Measuring range |
4 ppb / 0.05 ~ 300 % saturation |
|
Resolution |
0.1 ppb |
|
Response time at 25℃ (air -> N2 ) |
98 % full scale < 30 s |
|
Pressure range Prel |
-1 ~ 12 bar |
|
Temperature range |
-10 ~ 130℃ |
|
measurements |
0 ~ 80℃ |
|
O-ring material |
silicone and FKM (Viton) |
|
Process-wetted sensor parts |
stainless steel 1.4435 |
|
Temperature detector |
NTC 22 kohms |
|
Process adaptation |
Pg 13.5 |
|
Sensor cap |
M12 (8 pins) |
