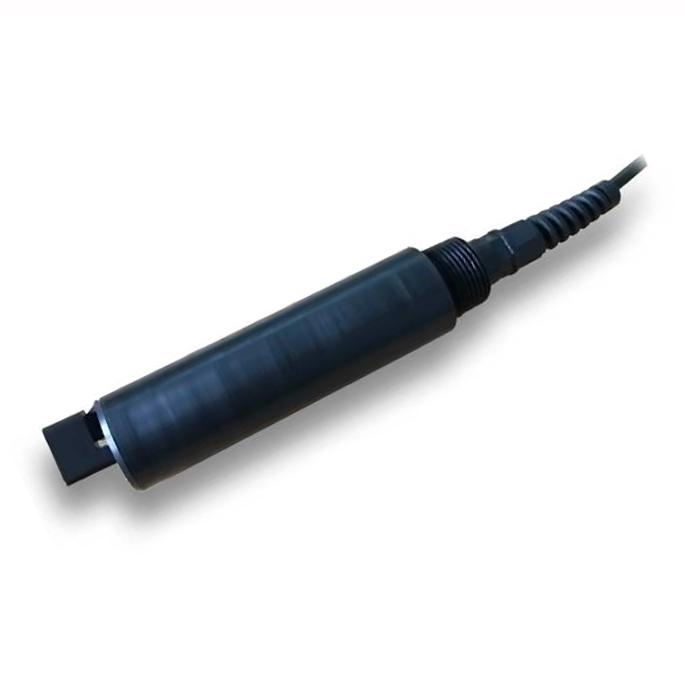

Online Self-cleaning Turbidity Sensor
-
Price
Price on request ≥1piece
-
Model Number
Y511-A -
Data Sheet
-
Package
Original packaging -
Specs
Y511-A -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description
Y511-A Turbidity Sensor Description
Automatic cleaning turbidity sensor is complied with ISO 7027 Turbidity Standard. The turbidity sensor can be deployed in-situ and provide very stable data over long period of usage, which helps to ensure the quality of your measurements.
Y511-A Turbidity Sensor Typical Applications
Water quality monitoring, waste water testing, process water and aquaculture monitoring.
Y511-A Turbidity Sensor Features
• 0.1~1000 NTU
• Accuracy <5% or 0.3 NTU
• 0~50 ℃; IP68 rating, 10m underwater
• 90°Angle of scattered light principle
• Temperature sensor built-in
• RS-485; MODBUS protocol compatible
• Convenient, fast, stable, easy to maintain
• With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world
Y511-A Turbidity Sensor Technical Parameters
Automatic cleaning turbidity sensor is complied with ISO 7027 Turbidity Standard. The turbidity sensor can be deployed in-situ and provide very stable data over long period of usage, which helps to ensure the quality of your measurements.
Y511-A Turbidity Sensor Typical Applications
Water quality monitoring, waste water testing, process water and aquaculture monitoring.
Y511-A Turbidity Sensor Features
• 0.1~1000 NTU
• Accuracy <5% or 0.3 NTU
• 0~50 ℃; IP68 rating, 10m underwater
• 90°Angle of scattered light principle
• Temperature sensor built-in
• RS-485; MODBUS protocol compatible
• Convenient, fast, stable, easy to maintain
• With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world
Y511-A Turbidity Sensor Technical Parameters
|
Range |
0.1~1000 NTU |
|
Housing IP Rating |
IP68 |
|
Deepest Depth |
10m underwater |
|
Accuracy |
<5% or 0.3NTU |
|
Temperature Range |
0 ~ 50℃ |
|
Interface |
Support RS-485, MODBUS protocols |
|
Assembly |
Immersion or circulation installation |
|
Power Requirements |
DC 5~12V, current <50mA |
|
Sensor OD |
33 mm |
|
Sensor Length |
156 mm |
|
Cable Length |
10m standard, 5m, 15m or 30m optional |
|
Body Materials |
POM |
