Product Description
PSC-G54NL/NV and PSC-S54NL/NV
1-Color Pyrometer Series

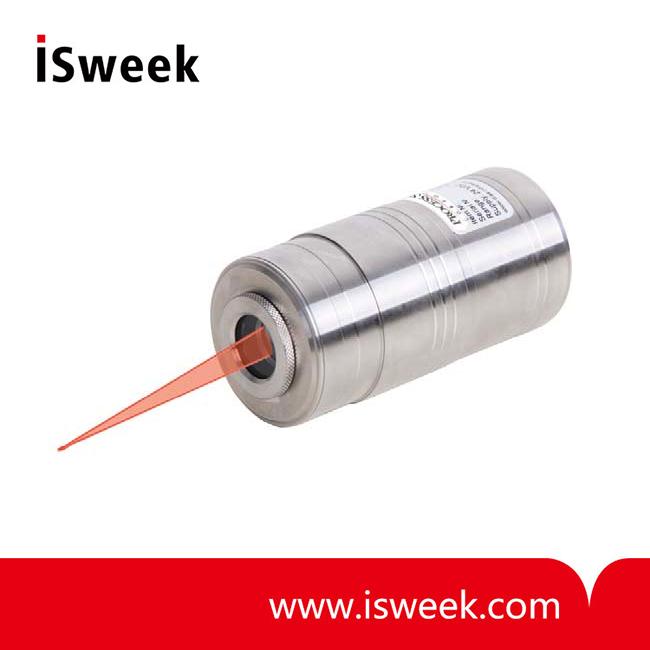

PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Description
The Stand Alone PSC-G54NL/NV and PSC-S54NL/NV One-Color Pyrometer Series provide pinpoint accuracy over an incredibly wide temperature range with customizable options. Choose from integrated laser aiming light or real-time color video camera sighting, ten distinct temperature ranges and four high-resolution, fixed focus optics.
These compact digital sensors are specifi cally designed for accuracy and reliability in harsh industrial and demanding laboratory applications. The PSC-G54N and S54N Series' 0/4 to 20mA output allows easy integration to existing measurement and control systems. RS-485 interface capability facilitates connection to a PC to allow all parameter settings to be set and adjusted using the PSCSpot software and optional RS-485 to USB connector.
PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Features
• Compact, Self-Contained with Rugged Stainless Steel Housing
• Laser or Integrated Color Video Camera Sighting
• 10 Temperature Ranges Spanning from 200° to 3000°C
• Analog 4-20mA and Digital RS-485 Interface
• Choice of 4 Fixed Focus, High Resolution Optics
• Fast Response Time from 2ms, Adjustable up to 100 seconds
• Small Spot Size with Fixed Focus Optics
• Connect to PC to Adjust Parameters with PSCSpot Software
• RS-485 Modbus Interface Integration into Existing Data Acquisition Systems
• Robust Hardware Designed for Harsh Industrial Continuous Operations
PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Applications
• Steel and Metals
• Induction Heating
• Ceramics/Composites
• Soldering
• Sintering/Graphite
• Welding
• Semiconductor
• Kilns
• Vacuum Furnace
• R & D
Specifications PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers
1-Color Pyrometer Series
PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Description
The Stand Alone PSC-G54NL/NV and PSC-S54NL/NV One-Color Pyrometer Series provide pinpoint accuracy over an incredibly wide temperature range with customizable options. Choose from integrated laser aiming light or real-time color video camera sighting, ten distinct temperature ranges and four high-resolution, fixed focus optics.
These compact digital sensors are specifi cally designed for accuracy and reliability in harsh industrial and demanding laboratory applications. The PSC-G54N and S54N Series' 0/4 to 20mA output allows easy integration to existing measurement and control systems. RS-485 interface capability facilitates connection to a PC to allow all parameter settings to be set and adjusted using the PSCSpot software and optional RS-485 to USB connector.
PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Features
• Compact, Self-Contained with Rugged Stainless Steel Housing
• Laser or Integrated Color Video Camera Sighting
• 10 Temperature Ranges Spanning from 200° to 3000°C
• Analog 4-20mA and Digital RS-485 Interface
• Choice of 4 Fixed Focus, High Resolution Optics
• Fast Response Time from 2ms, Adjustable up to 100 seconds
• Small Spot Size with Fixed Focus Optics
• Connect to PC to Adjust Parameters with PSCSpot Software
• RS-485 Modbus Interface Integration into Existing Data Acquisition Systems
• Robust Hardware Designed for Harsh Industrial Continuous Operations
PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers Applications
• Steel and Metals
• Induction Heating
• Ceramics/Composites
• Soldering
• Sintering/Graphite
• Welding
• Semiconductor
• Kilns
• Vacuum Furnace
• R & D
Specifications PSC-G54NL/NV and PSC-S54NL/NV Non-Contact Infrared Pyrometers
|
Temperature Range PSC-G54NL / NV |
200° to 1200°C |
200° to 2000°C |
250° to 1500°C |
350° to 2000°C |
250° to 2500°C |
|
392° to 2192°F |
392° to 3632°F |
482° to 2732°F |
662° to 3632°F |
482° to 2732°F |
|
|
Temperature Range PSC-S54NL / NV |
550° to 1500°C |
600° to 1800°C |
800° to 2500°C |
900° to 3000°C |
600° to 3000°C |
|
1022° to 2732°F |
1112° to 3272°F |
1472° to 4532°F |
1652° to 5432°F |
1112° to 5432°F |
|
|
Sub Temperature Range |
Adjustable Within Overall Temperature Range, Minimum Span 50°C (122°F) |
||||
|
Field of View Ratio |
200:1 |
200:1 |
200:1 |
200:1 |
200:1 |
|
Accuracy |
0.5% of Measured Value in °C |
||||
|
Reproducibility |
0.1% of Measured Value in °C |
||||
|
Method of Aiming |
PSC-G54NL and PSC-S54NL: Laser Aiming Light, 630…680 nm, Class II, <1 mW PSC-G54NV and PSC-S54NV: Video Camera, Composite Video Signal NTSC (M), 60Hz or PAL (B), 50Hz |
||||
|
Choice of Optics Types |
250mm, 650mm, 2000mm, 4000mm - Refer to FOV Diagrams |
||||
|
Spectral Range |
PSC-G54NL / NV 1.5µm to 1.8µm PSC-S54NL / NV 0.8µm to 1.1µm |
||||
|
Emissivity ε |
0.050 to 1.00 |
||||
|
Response Time (t95) |
2ms Adjustable up to 100 seconds |
||||
|
NETD |
0.1K |
||||
|
Transmissivity |
50% to 100% |
||||
|
Output |
0/4 mA to 20 mA, Temperature Linear, Max. Load 500 Ω (Galvanically Isolated) |
||||
|
Interface |
RS-485 (Galvanically Isolated), Half Duplex, Max. 115 kBd, Modbus RTU |
||||
|
Alarm Output |
1 Opto Relay, R Load Min. 48Ω (Galvanically Isolated) Adjustable Within Temperature Range |
||||
|
Parameters |
Adjustable Via Interface and Software, or at Device: Emissivity, Transmissivity, Ambient Radiation, Response Time, Data Storage Settings, Sub Range of Measurement Output, Switching Thresholds of Switching Output |
||||
|
Power Supply |
24 V DC ± 25%, Residual Ripple 500 mV |
||||
|
Power Consumption |
Max. 1.5W (Without Load at Switching Output) |
||||
|
Operating Temperature |
0° to 70°C (32° to 158°F) |
||||
|
Storage Temperature |
-20° to 70°C (-4° to 158°F) |
||||
|
Weight |
Approx. 600 grams (1 lb. 5.16 oz.) |
||||
|
Housing |
Stainless Steel Cylindrical Housing w/Plug Connector Approx. 105mm, ø 50mm |
||||
|
Safety Class |
IP65 According to DIN EN 60529 and DIN 40050 |
||||
|
Test Regulation |
EN 55 011: 1998, Limit Class A |
||||
|
CE Symbol |
According to EU Regulations |
||||
|
Standard Equipment |
PSC-G54NL/NV or PSC-S54NL/NV, Operation Manual, Inspection Sheet, PSC Spot Software, Without Connection Cable (Must be ordered separately) |
||||
