Multi-point Detection Panel

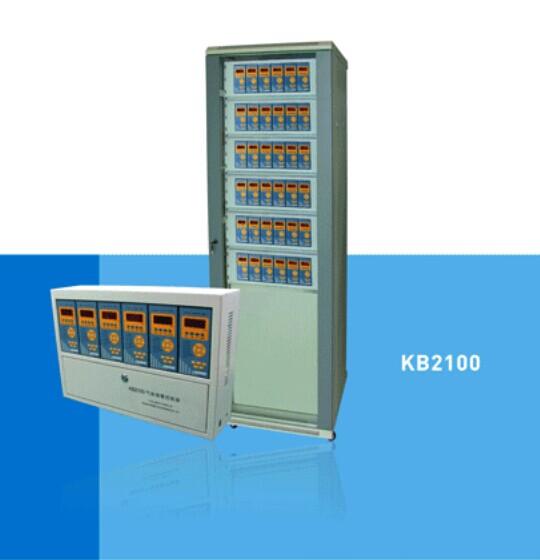

Multi-point Detection Panel Brief KB2100 introduction:

KB2100, a multi-point detection panel, is used for detecting gas concentration in the air with high sensitivity and fast response. It can connect different detectors to detect different gases (different extension), and concentrative control different places with MCU controller and excellent gas sensor. It will give visual and audible alarm when the gas concentration exceeds the preset alarming levels to remind the user to take effective measurement, and it will also start up the ventilation fan and other equipments to avoid explosions, fire and other accidents.

Multi-point Detection Panel Brief KB2100 Features:

- Independent cell, suitable for free combination

- Three alarming level with strongly function

- Alarming Signal programmable, N/O Relay output

- Intelligent system, zero calibration on line

- Testing range, resolution selective.

- 1-channel control one 4-20mA detector, can connect DCS, PLC system

- 7 LEDS display operation mode, 4 LEDS indicate state, with the menu, easy to operate,

- With password management

- Easy to install and maintenance

Multi-point Detection Panel Brief KB2100 Fitting:

- Standard fittings:Controller, Bracket, Using manual

- Optional fittings:Linkage control panel, Intelligent power supply

Multi-point Detection Panel Brief KB2100 Specifications:

- Installation method: Wall mounted and cabinet type

- Detector type: 4-20mA signal output

- Accuracy: +/-5%F.S.

- Response time:  <10s

- Indication: Digital LED screen displays gas concentration level

- LED indicates alarm and fault

- Output: 4-20mA

- Working method: continuous work

- Working temperature: -10'C-50'C

- Working humidity: <95%RH

- Working voltage: AC220V +/-l0% 50Hz +/-l%

- Power: Max 5W per channel for controller

Multi-point Detection Panel Brief KB2100 Dimensions:

Wall hanged: 4 channels   60mmX350mmX130mm
                     3 channels  280mmX350mmX130mm

                     2 channels  206mmX350mmX130mm

Cabinet: 800mmX600mmX2000mm

Cable: >= RVVP 1.5 mm²X3

Transmit distance: <=1000m

Multi-point Detection Panel Brief KB2100 System Make-up

1-channel gas monitor system is made up of one controller and one detector.

"N"-channel gas monitor systems are made up of N (1-8)pcs controller and N (1-8)pcs detectors.

Multi-point Detection Panel Brief KB2100 Installation:

The accessories of the controller include one controller and sustain plate. Fixed the sustain plate on the wall with M8X80 screws first, then hung the controller onto the sustain plate as following diagram:

1.Controller; 2.Sustain plate; 3.Hunging hole; 4.Fixing screw.
