Product Description

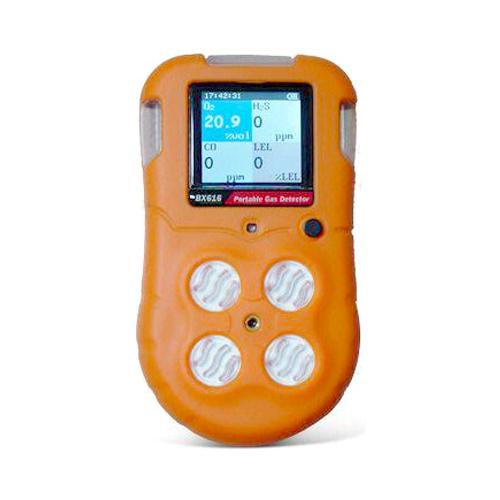

IMR IX616 Multi Gas Detector
• Continuous detection of O2, CO, H2S, CH4
• High / low alarms
• High quality sensor that detects gases via diffusion
• Durable case suitable for any environment
• Measuring memory
• Data transfer to PC
• Includes four sensors


IX616 Multi Gas Detector Gas Ranges

Target Gas Detecting Range Low-alarm Range
 High-alarm Range
Default
low alarm
Default
high alarm
TWA Alert STEL Alert
CH4 0~100%LEL
 10%LEL~25%LEL
 25%LEL~80%LEL
 20%LEL
 50%LEL

H2S 0~100ppm
 5ppm~15ppm
 15ppm~30ppm
 10ppm
 15ppm
 10ppm
 15ppm
CO
 0~1000ppm
 25ppm~100ppm
 100ppm~500ppm
 35ppm
 200ppm
 35ppm
 200ppm
O2 0~30%vol
 15%vol~19.5%vol
 22.5%vol~24%vol
 19.5%vol
 23.5%vol


IX616 Multi Gas Detector Specifications
Gas sampling method
 natural diffusion
Gas sensor type
 catalytic (for combustible gas) and electrochemical (for H2S, CO and O2)
Detecting gas
 combustible gas, H2S, CO, O2
Accuracy
 ≤±5%FS
Response time
 ≤30s
Indication
 LCD displays real-time and system status, LED, audio and vibration alert
for gas leakage, fault and low voltage
Working environment
 -20 to 50°C, 95% RH (no dew)
Power source
 3.6V DC Rechargeable Li-on battery, 1,800Ah
Charging time
 ≤6h
Working time
 ≥8h continuously (without alarming)
Gas sensor life
 2 years
Explosion-proof grade
 ExiallCT4
Protection grade
 IP65
Weight
 200g (with battery)
Dimensions
 116 x 66 x 30mm
