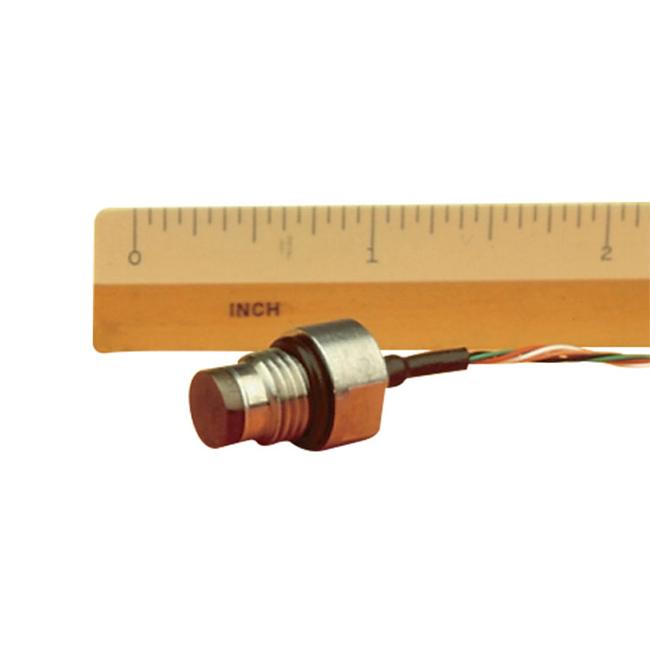

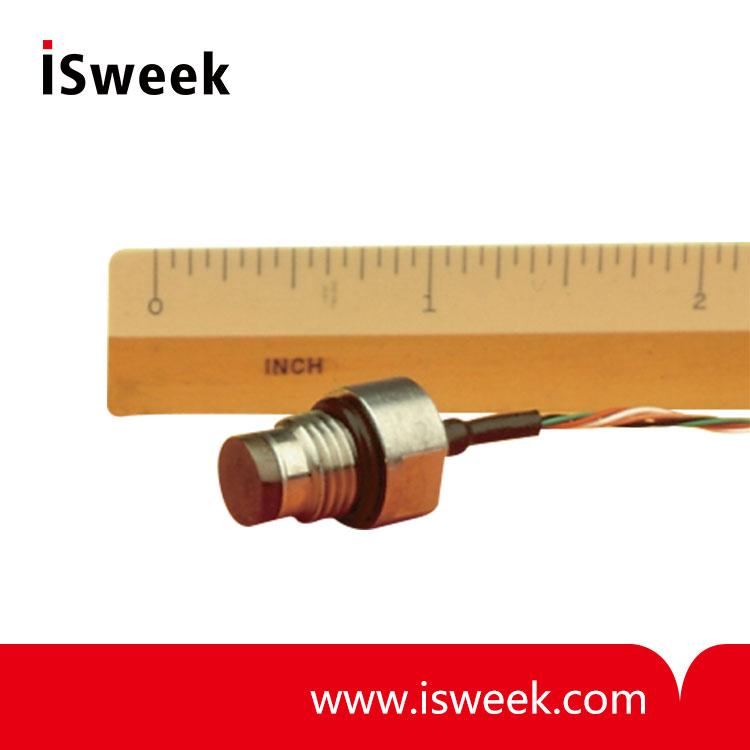

PSG 110 - Miniature Pressure Transducer

This subminiature pressure transducer is designed to accurately measure pressure ranges from 15 psi to 20,000 psi. Manufactured with a stainless steel diaphragm, the one piece design allows for a thin diaphragm but heavy sidewalls. This enables the transducer to be used in rugged environments while still being able to measure in low ranges. These transducers have a small electrical zero balance circuit board which is in the lead wire (approx. 1" x .087" thick).

PSG 110 Miniature Pressure Transducer Feature
• High Frequency
• Flush Diaphragm
• Small Size and Rugged
• 150 to 20,000 psi

PSG 110 Miniature Pressure Transducer Specifications
Pressure Ranges
 150 psi to 15,000 psi
Linear/Hysteresis
 150 psi to 15,000 psi - 1.0% F.S.
Repeatability
 150 psi to 15,000 psi - ±0.1% F.S.
Material
 17-4 PH Stainless
Temperature Range
 60˚ to 160˚F
Output
 150 psi to 20,000 psi - 2 mv/v
Bridge Rresistance
 350 ohm
Excitation
 5 Vdc
Safe Overload
 50% Over Capacity
Cable
 4 Twisted Leads - 5 Ft


AVAILABLE RANGES

T

Thread

A"

   Dia

D"

   Dia

   B"
    G"
 Dia
PSG 110
 150; 200; 300 psi
 3/8-24UNF
 .310
 .50
 .45
 .69
 Welded

500; 750; 1000; 1500; 2000; 3000 psi
 3/8-24UNF
 .310
 .50
 .45
 .69
 Welded

5000; 7500; 10,000; 15,000 psi
 3/8-24UNF
 .310
 .50
 .45
 .69
 Welded
PSG 111
 150 - 15,000 psi
 7/16-24NF
 .375
 .56
 .50
 .75
 Welded
*Stocked ranges are in bold type. The 3/8-24 Threaded Transducer is stocked only.
7/16-20UNF available on all models
