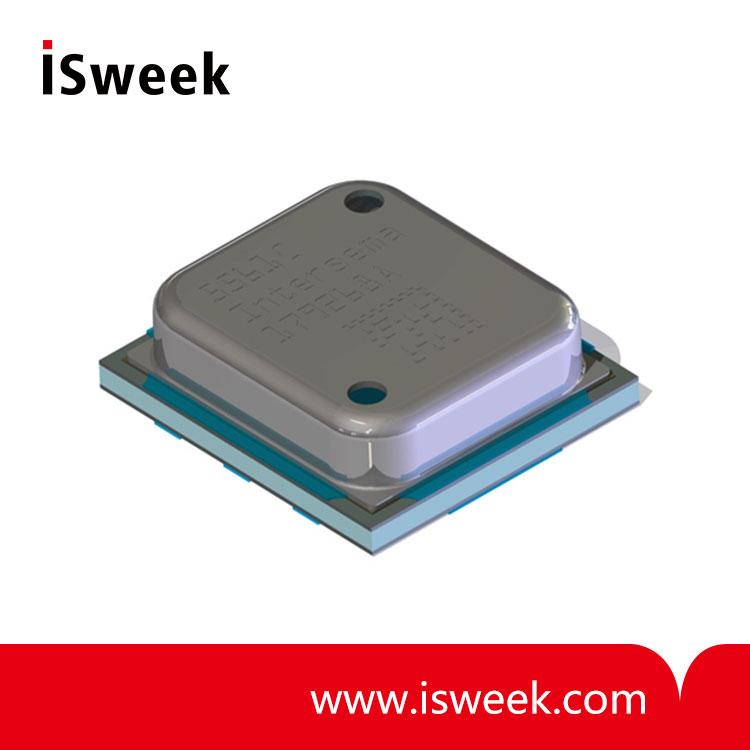

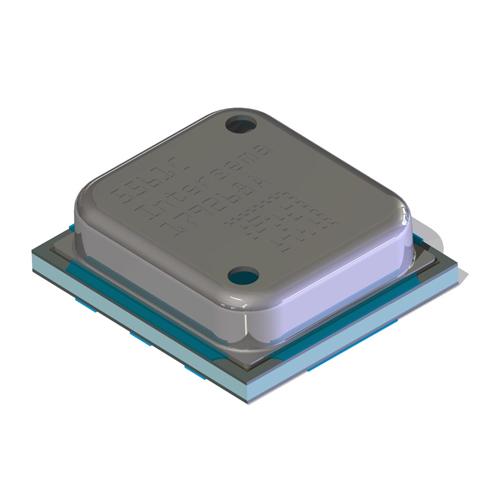

Micro Altimeter Pressure Sensor

MS5561C
Micro Altimeter

MS5561C Micro Altimeter Pressure Sensor Specifications
• 10 - 1100 mbar / 1 - 110 kPa absolute pressure range
• High accuracy temperature measurement
• Integrated miniature pressure sensor 4.75 x 4.25 mm
• Thin design of 1.6 mm
• Piezoresistive silicon micromachined sensor
• 6 coefficients for software compensation stored on-chip
• 16 Bit ADC, sigma delta converter
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption

MS5561C Micro Altimeter Pressure Sensor Description
The MS5561C is a SMD-hybrid device including a precision piezo-resistive pressure sensor and an ADC-Interface IC. It uses a three-wire serial interface for communication. The module dimensions of 4.75 mm x 4.25 mm and a height of only 1.6 mm allows for up-to-date SMD design. It provides a 16 bit data word from a pressure and temperature dependent voltage. The MS5561 is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a micro-controller.

MS5561C Micro Altimeter Pressure Sensor Features
• Pressure resolution 0.1mBar
• Operating temperature -40°C to +85°C
• Supply voltage 2.2V to 3.6V
• Low supply current, typ. 4µA
• Standby current < 0.1µA
• Calibrated temperature and pressure sensor for 2nd order compensation
• ESD protected, HBM 4kV

MS5561C Micro Altimeter Pressure Sensor Applications:
• Mobile phones
• GPS receivers
• Altimeter applications
• Personal Navigation Devices (PND)
• Digital cameras with altimeter function

MS5561C Micro Altimeter Pressure Sensor Pin Configuration
