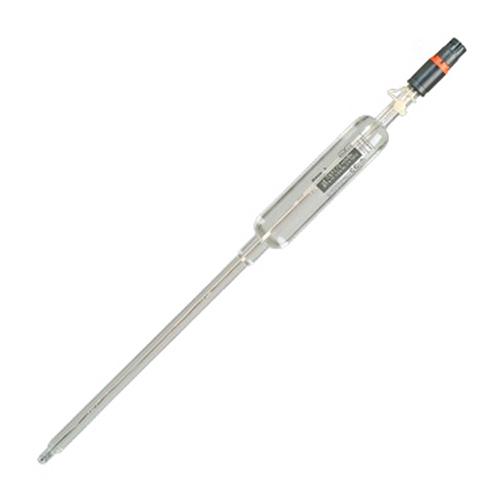

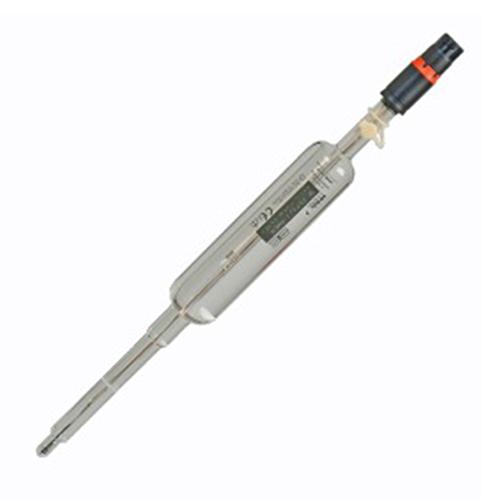

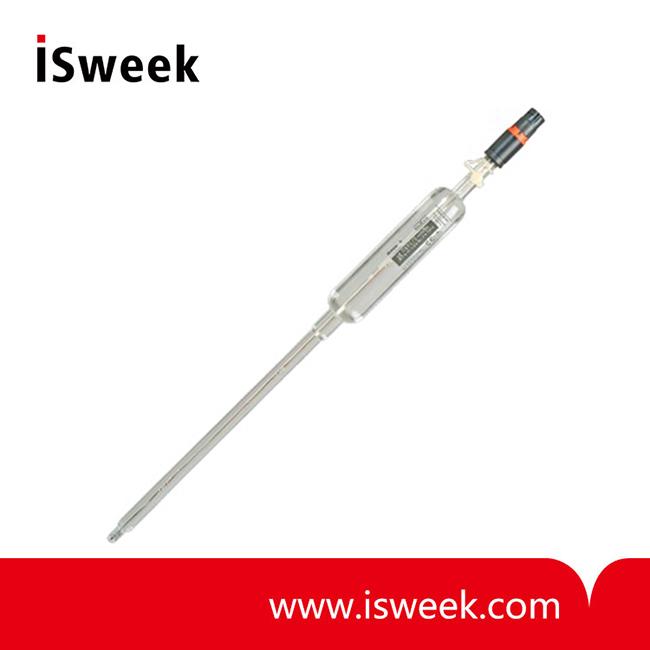

Memosens pH Sensor
-
Price
Price on request ≥1piece
-
Model Number
SE 557 -
Data Sheet
-
Package
Original packaging -
Specs
SE 557 -
Quantity
- +Send Inquiry
Find Similar Products
-
Modular Flat Surface pH & ORP Electrodes
Model Number：S8000CD/S8075CD Series
MOQ：1
-
Industrial Contacting Conductivity Sensors
Model Number：CS650/CS675/CS676 Series
MOQ：1
-
Toroidal Conductivity Sensor
Model Number：TCS3000 / TCS3020
MOQ：1
-
Sanitary Flange Mounted Conductivity/Resistivity Sensor
Model Number：CS615/CS620 Series
MOQ：1
-
Low Cost Epoxy Body Conductivity Sensors
Model Number：CS150/CS200 Series
MOQ：1
-
Submersible Flat-Surface, Self-Cleaning pH and ORP Electrodes
Model Number：S650/S651 Series
MOQ：1
Product Description
For special requirements and high-precision measurements with refillable liquid electrolyte, digital, with Memosens technology
Elimination of typical junction problems resulting in high measurement accuracy in ultrapure water as well as in heavily polluted media and at high temperatures. Integrated, refillable liquid electrolyte reservoir. 2 ceramic junctions, self cleaning due to pressurization (continuous outflow of electrolyte). Silver ion trap prevents junction fouling and contamination.
SE 557 Memosens pH Sensor Applications
Boiler feed water, water for injection (WFI), semiconductor production, media containing proteins or sulfides, difficult process media requiring high measurement stability
SE 557 Memosens pH Sensor Facts
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- High accuracy
- Extensive measuring range for pH and temperature
- Refillable liquid electrolyte
- 2 ceramic junctions
- Self cleaning due to pressurization
- Silver ion trap
- Integrated temperature detector
- CIP- and SIP-capable
SE 557 Memosens pH Sensor Specifications
|
pH |
0 ~ 14 |
|
Temperature |
-20 ~ 80 (135℃ NMSH) |
|
Pressure |
0 to 6 bars |
|
Temperature detector |
NTC 30 kohms |
|
Sensor material |
Highly alkali-resistant glass |
|
Reference system |
Ag/AgCl with silver ion trap, liquid electrolyte |
|
Electrolyte |
Friscolyt-B ZU 0591 |
|
Junction |
Ceramic (2 x) |
|
Immersion depth |
120 mm / 250 mm |
|
Sensor cap |
Memosens |
|
ATEX Certificate |
II 1G Ex ia IIC T3 / T4 / T6 |
