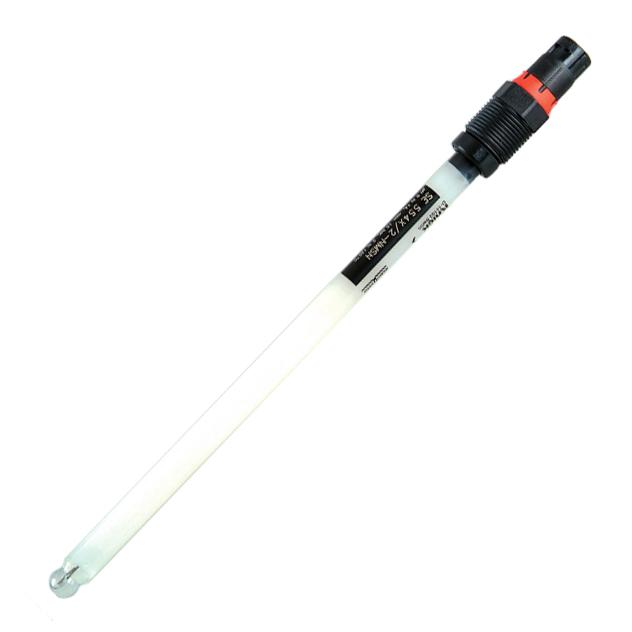

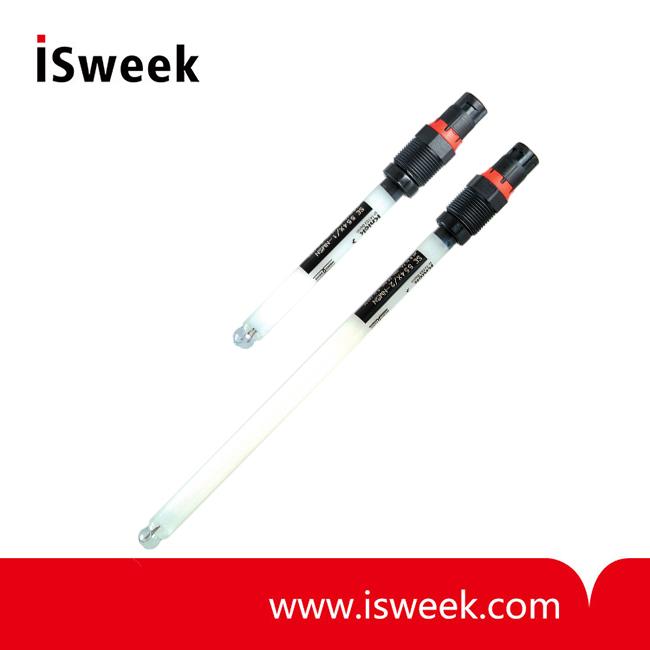

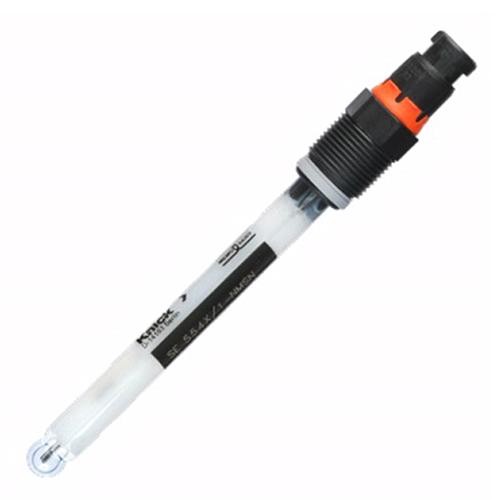

Memosens pH Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    SE 554

  • Data Sheet

  • Package

    Original packaging

  • Specs

    SE 554

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

SE 554 Memosens pH Sensor

Low-maintenance sensor for demanding process application in the chemical industry, digital, with Memosens technology


High accuracy, stability, rapidness, and a long life cycle are achieved by the special design. Through 2 open junctions, the refer-ence system is in direct contact with the measured medium. There is hardly any risk of contamination or blocking of the junc-tion. The high content and special distribu-tion of potassium chloride in the polymer reduces measurement disturbances which could be caused by liquid junction potentials.


SE 554 Memosens pH Sensor Facts
- Perfect galvanic isolation thanks to Memosens technology
- No influence of humidity in the connector
- Precalibration in the lab
- Digital data transfer
- Integrated sensor diagnostics
- Low maintenance, no refilling of electrolyte
- Integrated temperature detector
- Open junctions, no blocking


SE 554 Memosens pH Sensor Applications
Measurement in media of extremely high ionic strength, salt spring, strongly oxidizing media, acidic and alkaline media


SE 554 Memosens pH Sensor Specifications

pH 0 - 14
Temperature 0 ~ 130 °C
Pressure Up to 10 bars
Temperature detector NTC 30 kohms
Sensor material Low-impedance standard pH glass, fast response
Reference system Ag/AgCl, polymeric electrolyte
Junction Hole (2 x)
Length 120 mm / 225 mm
Process adaptation Pg 13.5
Sensor cap Memosens
ATEX Certificate II 1 G Ex ia IIC T3 / T4 / T6
