Product Description

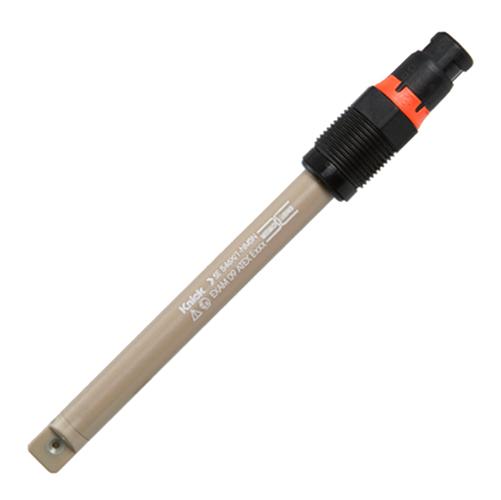

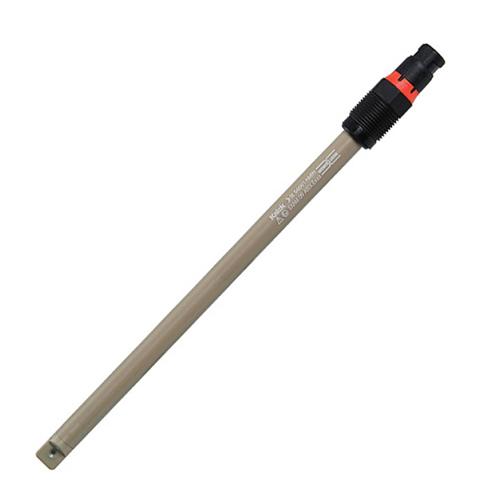

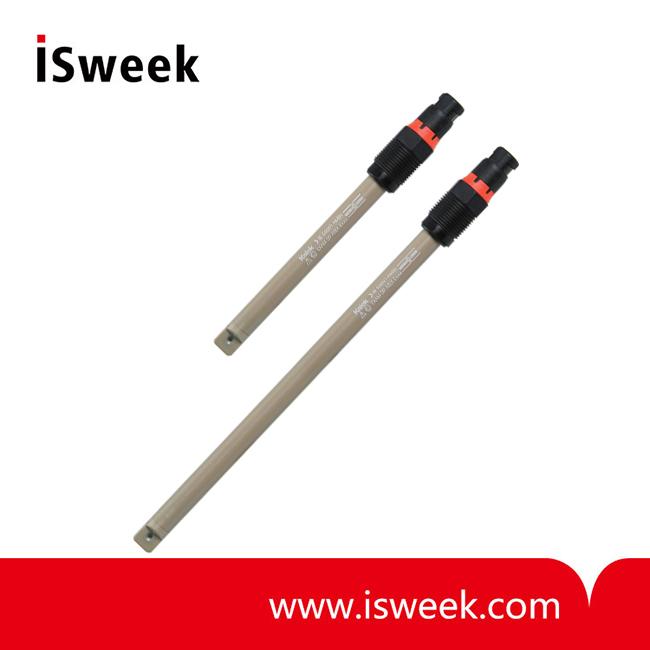

SE 546 Memosens pH Sensor
Break-resistant ISFET sensor, digital, with Memosens technology

Broad range of applications due to out-standing features: Body made of FDA-compliant PEEK, double-chamber reference system, short response time, application at low temperatures, certified biocompatibility, sterilizable and autoclavable.

SE 546 Memosens pH Sensor Facts
 - Perfect galvanic isolation thanks to Memosens technology
 - No influence of humidity in the connector
 - Precalibration in the lab
 - Digital data transfer
 - Integrated sensor diagnostics
 - Break resistant
 - Short response time
 - Double-chamber reference system
 - Acrylamide-free reference gel electrolyte
 - Certified biocompatibility
 - Integrated temperature detector
 - Application at low temperatures
 - CIP- and SIP-capable, autoclavable

SE 546 Memosens pH Sensor Applications
Hygienic and sterile applications, food and pharmaceutical industry, biotechnology

SE 546 Memosens pH Sensor Specifications

pH

 0 ~ 14

Temperature

 -15 ~ +110℃ (hazardous-area application)

 -15 ~ +135 ℃ (safe-area application)

Pressure

 0 ~ 10 bars

Sensor material

 ISFET (ion-sensitive field-effect transistor)

Reference system

 Ag/AgCl, gel electrolyte, double chamber

Temperature detector

 NTC 30 kohms

Hygienic design

 EHEDG-validated

Process-wetted material

 PEEK, EPDM, FDA-conforming

Junction

 Ceramic (1 x)

Immersion depth

 120 mm / 225 mm

Process adaptation

 Pg 13.5

Sensor cap

 Memosens

ATEX Certificate

 II 1G Ex ia IIC T3 / T4 / T6
