Product Description

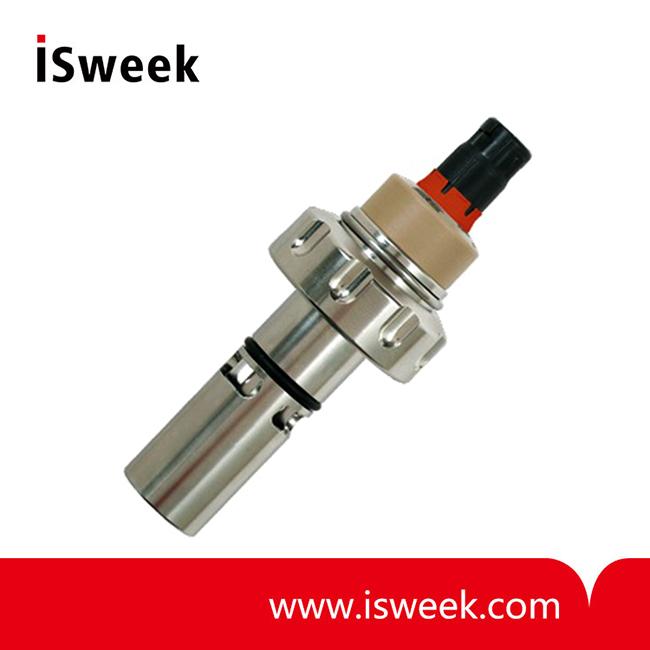

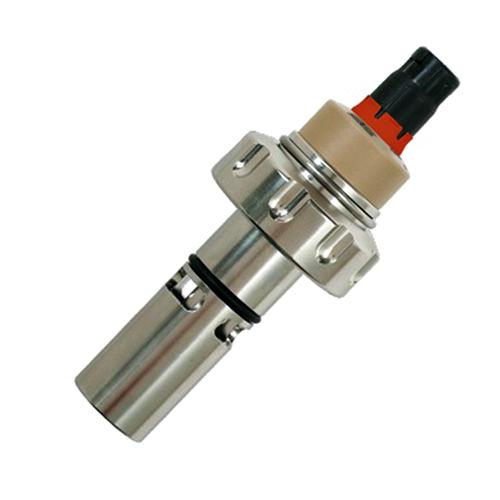

SE 605 (H) Memosens Conductivity Sensor
Robust 2-electrode sensor, for precise and reliable measurement of low and very low conductivities, particularly in ultrapure water, digital, with Memosens technology

Robust, coaxially arranged electrodes made of stainless steel. Large measuring range from ultrapure water to 600 µS/cm. Integrated temperature detector for temperature compensation. Easy to clean thanks to replaceable outer and inner electrode.


SE 605 (H) Conductivity Sensor Applications

Ultrapure water, WFI (water for injection), pharmaceutical and food industry, biotechnology


SE 605 (H) Conductivity Sensor Facts

- Perfect galvanic isolation thanks to Memosens technology
- Digital data transfer
- Integrated sensor diagnostics
- Large measuring range from ultrapure water to 600 µS/cm
- Hygienic design
- Electropolished - roughness <0.4 or <0.8 µm, resp.
- FDA-certified materials
- Coaxially arranged electrodes
- Independent of installation conditions
- Integrated temperature detector
- High level of process safety due to durable materials and robust design
- Easy to clean thanks to replaceable outer and inner electrode
- Particularly suitable for monitoring ultrapure water in power plants
- Hygienic design
- Electropolished
- roughness <0.4 or <0.8 µm, resp.
- FDA-certified materials
- Coaxially arranged electrodes
- Independent of installation conditions
- Integrated temperature detector


SE 605 (H) Conductivity Sensor Technical Data

Cell constant  0.021/cm
Measuring range  0,001 ... 600 µS/cm
Accuracy  2 % meas. value up to 500 µS/cm
Process-wetted materials  1.4435 stainless steel; insulator: PEEK; gaskets: EPDM

Temperature detector

 NTC 30 kΩ (reduced accuracy above 100 °C)

Temperature

 Medium: -20 … +135 °C
 Environment: -25 … +80 °C

Pressure (relative)


 -1 ... 25 bar (-20 … +70 °C)
 -1 ... 10 bar (135 °C

Process adaptation  See product range
Sensor connector  Memosens
Explosion protection  II 1 G Ex ia IIC T3/T4/T6
Hazardous area  II 3 G Ex ic IIC T3/T4/T6 Gc
