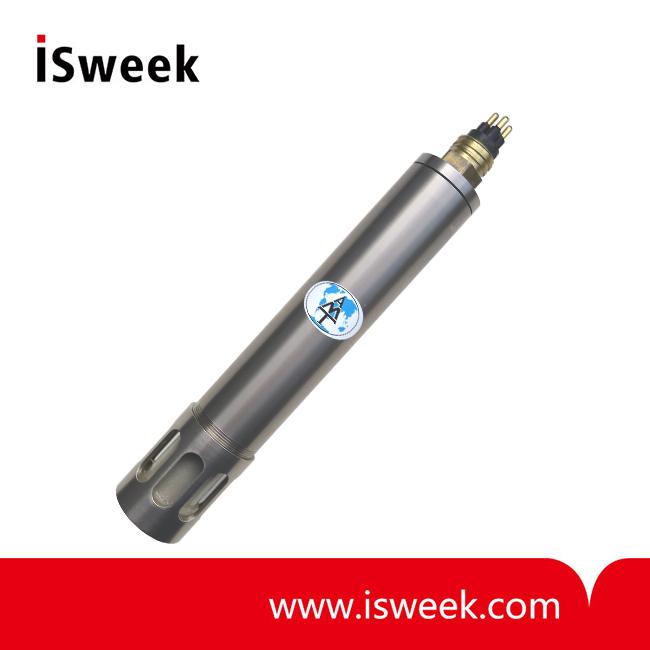

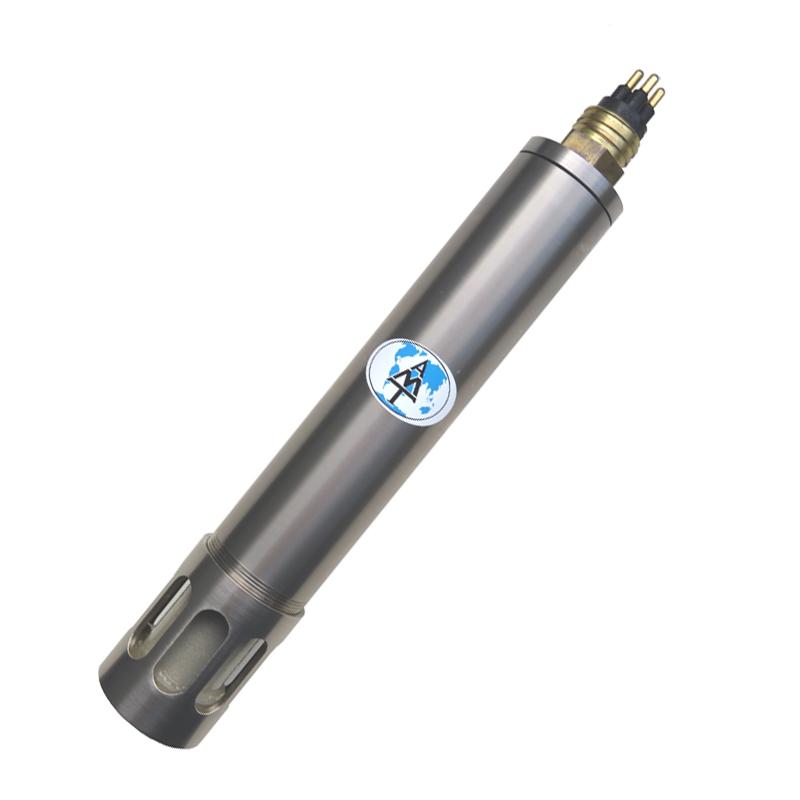

Membrane Covered Optical CO2 Sensor for Monitoring
-
Price
Price on request ≥1piece
-
Model Number
OPTCO2 -
Data Sheet
-
Package
Original packaging -
Specs
OPTCO2 -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description
Membrane covered optical CO2 sensor for monitoring
Online determination of the dissolved carbon dioxide in water
The measurement of dissolved carbon dioxide (excluding HCO3- and CO32-) in water is one of the most important parameters for water monitoring. AMT GmbH has developed now a new membrane covered optical CO2 sensor with titanium housing and other improved characteristics. So the new AMT-CO2 sensor is designed for depths of up to 1,000 m, has an analogue or digital output, a reduced current uptake and includes an automatic internal temperature compensation. The sensor is designed to be interfaced externally to CTD probe systems, to own measuring systems or as stand alone sensor.
Main features of the Carbon Dioxide Sensor:
- submersible direct reading sensor for natural and industrial waters and sea water
- detects CO2 and total inorganic carbon when measuring additionally pH
- no signal interferences to silicate, phosphate, HCO3- and CO32-
- built-in reference measurement for superior stability
- calibration coefficients stored internally
- for depths of up to 1,000 m
- less than 0.5 W power consumption
- with analogue or digital output (please select)
- with internal temperature compensation
- compensation of humidity and other influences
- heated sensor head to avoid condensation
Technical data of the membrane covered optical carbon dioxide sensor:
Online determination of the dissolved carbon dioxide in water
Main features of the Carbon Dioxide Sensor:
- submersible direct reading sensor for natural and industrial waters and sea water
- detects CO2 and total inorganic carbon when measuring additionally pH
- no signal interferences to silicate, phosphate, HCO3- and CO32-
- built-in reference measurement for superior stability
- calibration coefficients stored internally
- for depths of up to 1,000 m
- less than 0.5 W power consumption
- with analogue or digital output (please select)
- with internal temperature compensation
- compensation of humidity and other influences
- heated sensor head to avoid condensation
Technical data of the membrane covered optical carbon dioxide sensor:
|
Carbon Dioxide: |
|
|
Measuring ranges |
15 mg/l, 50 mg/l, 340 mg/l and others on request (please select one) |
|
Accuracy |
0...5 mg/l CO2: ± 0.06 mg/l 5...15 mg/l CO2: ± 2 % of the measuring value 15...50 mg/l CO2: ± 3.5 % of the measuring value 50...80 mg/l CO2: ± 1.5 mg/l CO2 80...340 mg/l CO2: ± 6 mg/l CO2 |
|
General: |
|
|
Dimensions |
225 mm length, 33 mm diameter |
|
Housing material |
Titanium |
|
Connector |
Subconn MCBH4M |
|
Power supply |
12-30 V DC when using the digital or voltage output or 20-30 V DC when using the current output |
|
Power consumption |
< 0.5 W |
|
Warm up time |
< 12 seconds, < 2 minutes for full accuracy |
|
Maximum deployment depth |
1,000 m/1,000 dbar |
|
Available outputs |
4...20 mA, 0...5 V DC or digital output RS485 |
|
Temperature range for storage and measurement |
0...60°C |
|
Internal temperature compensation |
|
| Compensation of humidity and other influences | |
