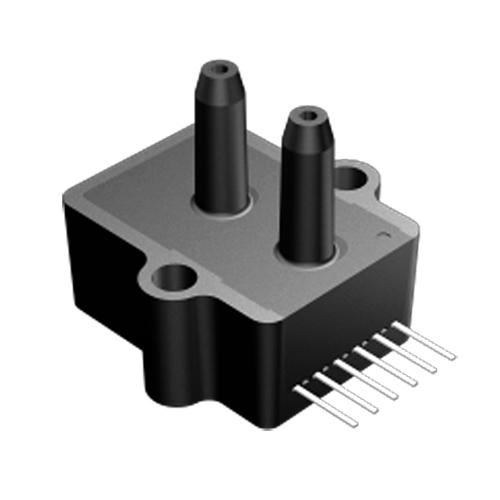

Medical Breathing Special Amplified Output Pressure Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    120 CMH2O-D-4V

  • Data Sheet

  • Package

    Original packaging

  • Specs

    120 CMH2O-D-4V

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

Amplified Pressure Sensors
-10 cm H2O to 120 cm H2O Pressure Sensor

Amplified Output Pressure Sensors General Description
This Amplified Output pressure sensor is based upon a proprietary technology to compensate all errors. This model provides a calibrated amplified output with superior output characteristics. Output characteristics are tested at pressure and temperature and then digitally compensated using a proprietary 3D mapping scheme. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

Amplified Output Pressure Sensors Features
• 4 Volt ratiometric output
• Temperature Compensated
• Calibrated Zero and Span

Amplified Output Pressure Sensors Applications
• Medical Instrumentation
• Respiratory Breathing

Medical Breathing Special Amplified Output Pressure Sensors
Pressure Sensor Characteristics Maximum Ratings
Environmental Specifications
Supply Supply Voltage VS
 +4.5 to +5.5 Vdc
 Compensated Temperature
 see specification
Common-mode pressure
 10 psig
 Operating Temperature
 -25 to 85 °C
Lead Temperature (soldering 2-4 sec.)
 250°C
 Storage Temperature
 -40 to 125 °C


Humidity Limits
 0 to 95% RH (non condensing)

Amplified Output Pressure Sensors Standard Pressure Ranges
Part Number
 Operating Pressure
 Compensated Range
 Proof Pressure
 Burst Pressure
120 CMH2O-D-4V
 -10 to 120 cm H2O
 5 to 50° C
 300 cmH2O
 600 cmH2O
120 CMH2O-D-4V-PRIME
 -10 to 120 cm H2O
 -25 to 85° C
 300 cmH2O
 600 cmH2O

Performance Characteristics for 120 CMH2O-D-4V
Parameter
 Minimum
 Nominal
 Maximum
 Maximum
Operating Range, pressure
 -10
 - 120 cmH2O
Output Voltage, @120 cmH2O
 4.40
 4.5
 4.6
 volt
Output Voltage @ zero pressure
 0.30 0.35 0.40 volt
Output Voltage @-10 cmH2O
 0.23 0.28 0.33
 volt
Offset Temperature Shift (5°C-50°C)
 - - ±1.0
 %span
Linearity, hysteresis error
 - 0.05
 ±0.25
 %fs
Span Shift (5°C-50°C)
 - - ±1.0
 %span

Performance Characteristics for 120 CMH2O-D-4V-PRIME
Parameter
 Minimum
 Nominal
 Maximum
 Maximum
Operating Range, pressure
 -10
 - 120 cmH2O
Output Voltage, @120 cmH2O
 4.40
 4.5
 4.6
 volt
Output Voltage @ zero pressure
 0.30 0.35 0.40
 volt
Output Voltage @-10 cmH2O
 0.23 0.28
 0.33
 volt
Offset Temperature Shift (-25 to 85°C)
 - - ±1.0
 %span
Linearity, hysteresis error
 - 0.05
 ±0.25
 %fs
Span Shift (-25 to 85°C)
 - - ±1.0
 %span
