Product Description

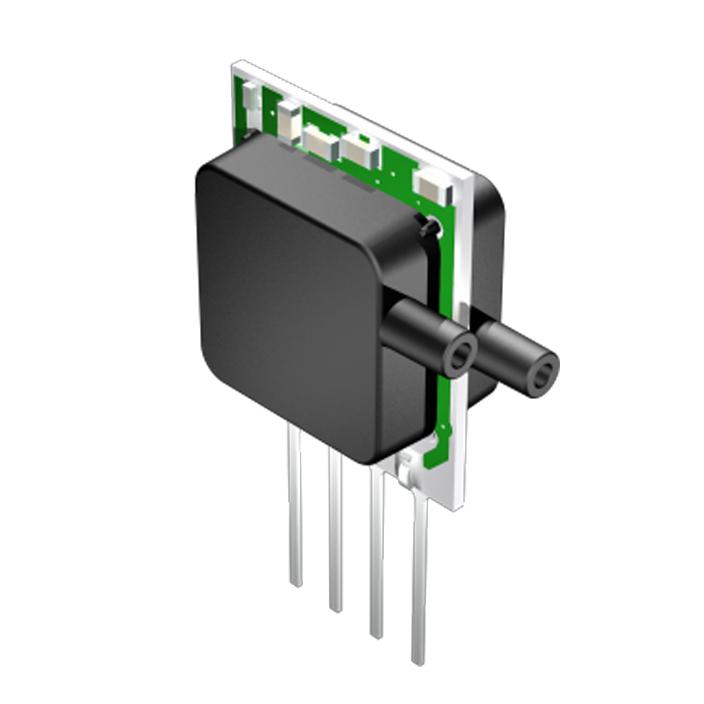

Miniature Amplified Pressure Sensors
cm H2O calibrated for Medical applications
MAMP Series CMH2O Calibrated Amplified Pressure Sensors General Description
The Miniature Amplified Output pressure sensors is based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Features
• cm H2O Pressure Ranges
• Matched pressure port volumes
• Temperature Compensated
• Calibrated Zero and Span
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Applications
• Medical Instrumentation
• Respiratory Breathing
MAMP Series CMH2O Calibrated Miniature Amplified Pressure Sensors
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Standard Pressure Ranges
cm H2O calibrated for Medical applications
MAMP Series CMH2O Calibrated Amplified Pressure Sensors General Description
The Miniature Amplified Output pressure sensors is based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics. Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Features
• cm H2O Pressure Ranges
• Matched pressure port volumes
• Temperature Compensated
• Calibrated Zero and Span
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Applications
• Medical Instrumentation
• Respiratory Breathing
MAMP Series CMH2O Calibrated Miniature Amplified Pressure Sensors
|
Pressure Sensor Characteristics Maximum Ratings |
|
Environmental Specifications |
||
|
Supply Supply Voltage VS |
+4.5 to +75.5Vdc |
Compensated Temperature |
see specification |
|
|
Common-mode pressure |
10 psig |
Operating Temperature |
-25 to 85 °C |
|
|
Lead Temperature (soldering 2-4 sec.) |
250°C |
Humidity Limits |
-40 to 125 °C |
|
|
|
|
|
0 to 95% RH (non condensing) | |
MAMP Series CMH2O Calibrated Amplified Pressure Sensors Standard Pressure Ranges
|
Part Number |
Operating Pressure |
Compensated Range |
Proof Pressure |
Burst Pressure |
|
5 cmH2O-D1-4V-MINI |
-0.2 to 5 cmH2O |
5 to 50 °C |
50 cmH2O |
200 cmH2O |
|
20 cmH2O-D1-4V-MINI |
-0.2 to 20 cmH2O |
5 to 50 °C |
100 cmH2O |
300 cmH2O |
|
120 cmH2O-D1-4V-MINI |
-10 to 120 cm H2O |
5 to 50 °C |
300 cmH2O |
600 cmH2O |
|
5 cmH2O-D1-P4V-MINI |
-0.2 to 5 cmH2O |
-25 to 85 °C |
50 cmH2O |
200 cmH2O |
|
20 cmH2O-D1-P4V-MINI |
-0.2 to 20 cmH2O |
-25 to 85 °C |
100 cmH2O |
300 cmH2O |
|
120 cmH2O-D1-P4V-MINI |
-10 to 120 cm H2O |
-25 to 85 °C |
300 cmH2O |
600 cmH2O |
