Product Description

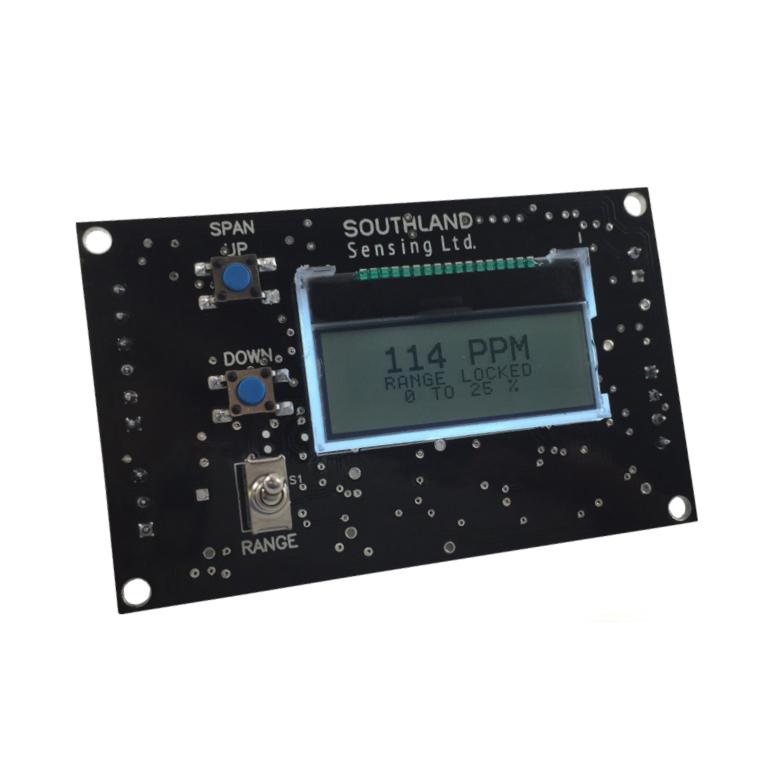

EMD-485 OEM Oxygen Transmitter
• Low Cost Trace or Percent Oxygen Transmitter
• 4 - 20mA Analog Output and 0 - 1 VDC
• New Updated Microprocessor Based Design
• Factory Configurable Ranges
• Optional Display, Sensor, Sensor Housings


EMD-485 OEM Oxygen Transmitter Applications:
• Inert Glove Box Systems
• Nitrogen and O2 PSA Generators
• Laboratories & Universities
• Beverage Grade CO2 Monitoring
• Air Separation Plants & Many Others

EMD-485 OEM Oxygen Transmitter Specifications:

Ranges:
  Two Pre-Configured (See Options)
Accuracy:
  +/- 1% Full Scale Range*
Calibration:
  Every 2-3 Months
Calibration:
  On Board Potentiometer
Classification:
  General Purpose
Connections:
  See Options
Dimensions :
  Board
Display:
  None
Flow:
  0 - 5 SCFH
Output:
  4-20mA & 0 - 1VDC
Power:
  12 - 24VDC
Response time:
  T90 in 10 Seconds
Sensor (Optional):
  TO2-1x Trace Oxygen
Sensor Life:
  15-21 months
Temperature:
  0-50 Deg C
Warranty:
  9 Months Sensor
Warranty:
  12 Months Electronics

*Accuracy at constant conditions


EMD-485 OEM Oxygen Transmitter Optional Accessories:
• Optional Ranges: 10/100/1000ppm/1%/5%/10%/25%/100% (Other Ranges Available on Request)
• H3 Flow Through Sensor Housing 1/8"
• H1 Direct Install KF-40 Sensor Housing
• Optional Graphical Display W/ Backlight
• Other Customization Packages Available

EMD-485 OEM Oxygen Transmitter Order Information
