Product Description

PLC 105 - Low Cost Pressure Transducer

The Model PLC 105 is low cost alternative pressure transducers offering good performance in high volume applications. Stainless steel construction provides durability to survive rugged environments. The PLC 105 offers a nominal 2 mv/v output. This transducer is able to handle both liquid and gas pressure with safe overloads to 50% of capacity.

PLC 105 Low Cost Pressure Transducer Feature
• Welded Stainless Steel
• Low Cost
• Quick Delivery

PLC 105 Low Cost Pressure Transducer Specifications

Pressure Ranges
 1 psig to 10,000 psig
Accuracy
 ±0.5% F.S.
Material
 Stainless Steel
Temperature Range
 60˚ to 160˚ F
Output
 1 psi to 5 psi - 5mv/v
15 psi to 100 psi - 10mv/v
150 psi to 10,000 psi - 2 mv/v
Bridge Rresistance
 1 psi to 100 psi - 5000 ohm
150 psi to 10,000 psi - 350 ohm
Excitation
 10 Vdc
Safe Overload
 50% Over Capacity
Pressure Ports
 1/4-18 NPT
Cable
 3 ft

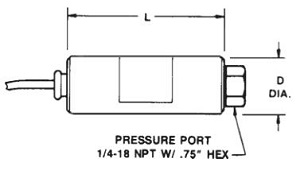

AVAILABLE RANGES
 D”
 L”
 H”
1; 2.5; 5
 1.125
 2.26
 1 hex
15; 30; 50; 75; 100
 1.125
 2.23
 1 hex
150; 200; 300; 500; 750
 1.125
 2.00
 .875 hex
1000; 1500; 2000; 3000; 5000; 7500; 10,000
 1.125
 1.78
 .750 hex
