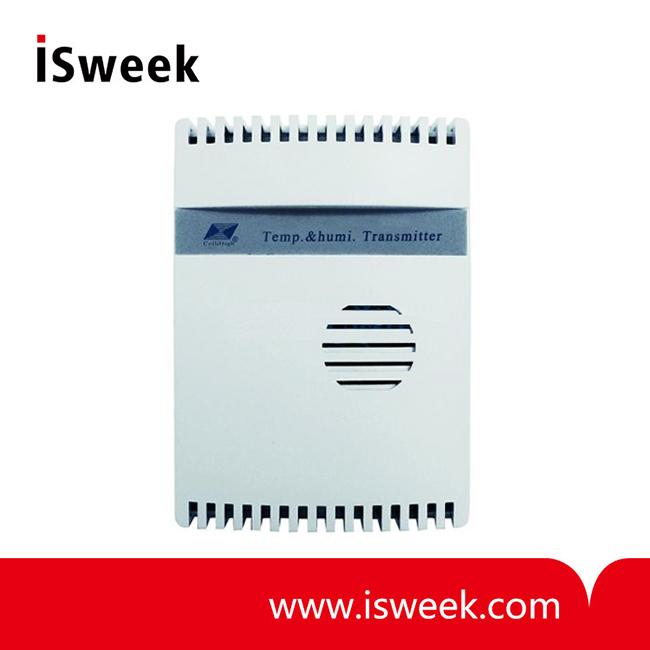

Low Cost and Small Cubage Temperature and Humidity Transmitter
-
Price
Price on request ≥1piece
-
Model Number
JWSL-1 -
Data Sheet
-
Package
Original packaging -
Specs
JWSL-1 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
JWSL-1 Temperature and Humidity Transmitter Introduction
The series is designed sensor and transmitter integrated, which can applied to the general indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. It also has reliable performance, long service life and fast response speed.
JWSL-1 Temperature and Humidity Transmitter Use
The model JWSL-1 series product is a temperature and humidity transmitter with low cost and small cubage. It convert the temperature and humidity of indoor air to stand electrical signals (e.g. 4-20mA, 0-5VDC) for auto control system or remote data acquisition system. It's extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.
JWSL-1 Temperature and Humidity Transmitter Characteristic
• Low cost and small cubage
• ±0.5°C and ±3.0%RH accuracy
• 4-20mA outputs
• CE certification
JWSL-1 Temperature and Humidity Transmitter Performance Specifications
JWSL-1 Temperature and Humidity Transmitter Ordering Codes
The series is designed sensor and transmitter integrated, which can applied to the general indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. It also has reliable performance, long service life and fast response speed.
JWSL-1 Temperature and Humidity Transmitter Use
The model JWSL-1 series product is a temperature and humidity transmitter with low cost and small cubage. It convert the temperature and humidity of indoor air to stand electrical signals (e.g. 4-20mA, 0-5VDC) for auto control system or remote data acquisition system. It's extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.
JWSL-1 Temperature and Humidity Transmitter Characteristic
• Low cost and small cubage
• ±0.5°C and ±3.0%RH accuracy
• 4-20mA outputs
• CE certification
JWSL-1 Temperature and Humidity Transmitter Performance Specifications
|
Power voltage |
24VDC (18-30V) |
|
Accuracy (25°C) |
Temperature: ±0.5°C (0°C - 50°C) Humidity: ±3.0%RH |
|
Output |
Current two-wire 4 to 20mA (Load < 500Ω); Voltage 0-5VDC (Load > 1KΩ) |
|
Response time |
<15s (wind speed >1m/s) |
|
Long-term stability |
Temperature: <0.1°C/year Humidity: <1%RH/year |
|
Operating environment |
-10°C ~ 60°C; 5%RH ~ 95%RH |
|
Mounting dimension |
90mm x 65mm x 20mm (White Color ABS) |
JWSL-1 Temperature and Humidity Transmitter Ordering Codes
