Product Description

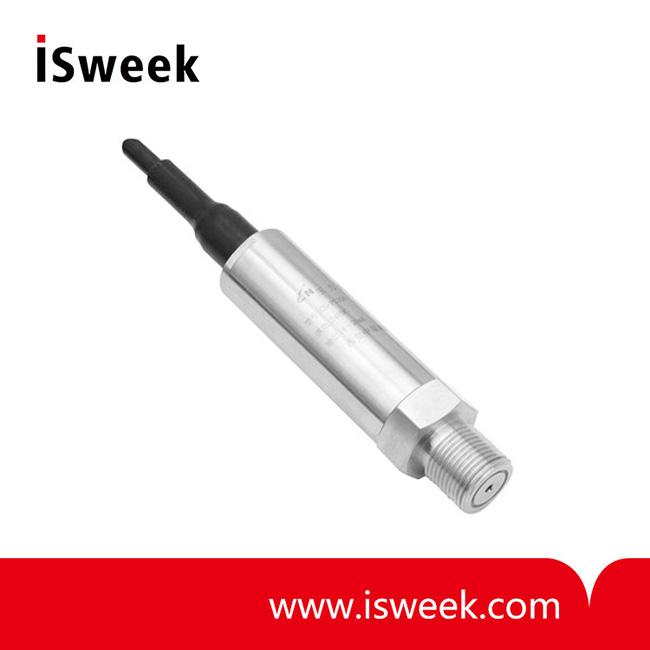

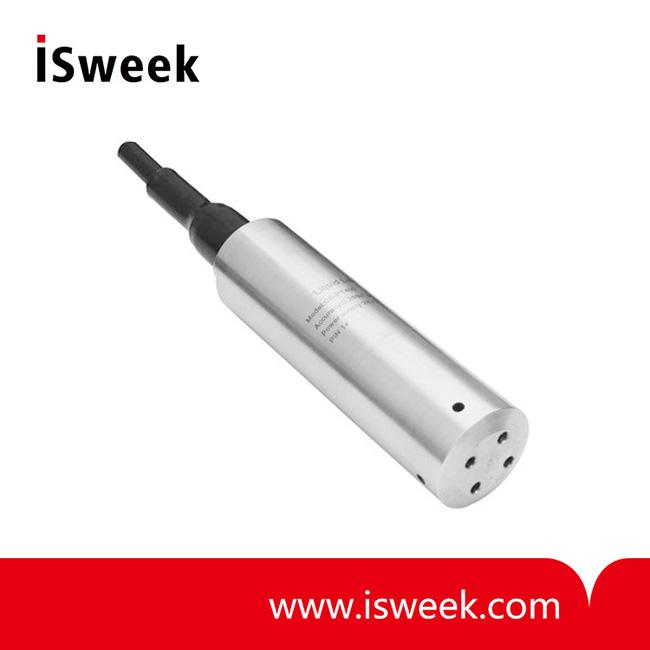

CS-WPT400
Level Transducer Embeedded Temperature
Measuring range: 0~3......200 mH2O
CS-WPT400 Level Transducer Applications:
• Hydrological monitoring
• Frequency of water supply
• Sewage treatment
CS-WPT400 Level Transducer Technical parameters
|
The routine |
Value |
Note |
||||
|
Measure Range |
0~3......200 mH2O |
1mH2O =9.81KPa |
||||
|
Overload Pressure |
1.5*RP(rated pressure) |
|||||
|
Broken Pressure |
3*RP(rated pressure) |
|||||
|
Accuracy |
±0.5%F.S |
|||||
|
Stability |
Typical 0.1%F.S/Y, Max 0.2%F.S/Y |
|||||
|
Operating Temprature |
-40℃~85℃ |
|||||
|
Compensating Temprature |
-10℃~70℃ |
|
||||
|
Medium Compatibility |
Corrosive medium compatible with Cr18Ni9Ti,316L |
|
||||
|
Wires |
Two-wire |
Three-wire |
|
|||
|
Signal Output |
4~20mA |
1~5V |
0.5~4.5V |
|
||
|
Power Supply |
10~30Vdc |
8~30Vdc |
5V(ratio) |
|
||
|
Load Resistance |
(U-10)/0.02(Ω) |
>100kΩ |
|
|||
|
Insulation |
>100M Ω@50V |
|
||||
|
Elec.connector |
five level protection.IP68 |
|
||||
|
Pressure Port |
Investment style, Threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
|
||||
|
Pressure Form |
Gauge G, Sealed Gauge S |
Response Time: 10ms |
||||
|
EMC |
EMI: EN50081-1/-2; EMS: EN50082-2 |
|
||||
