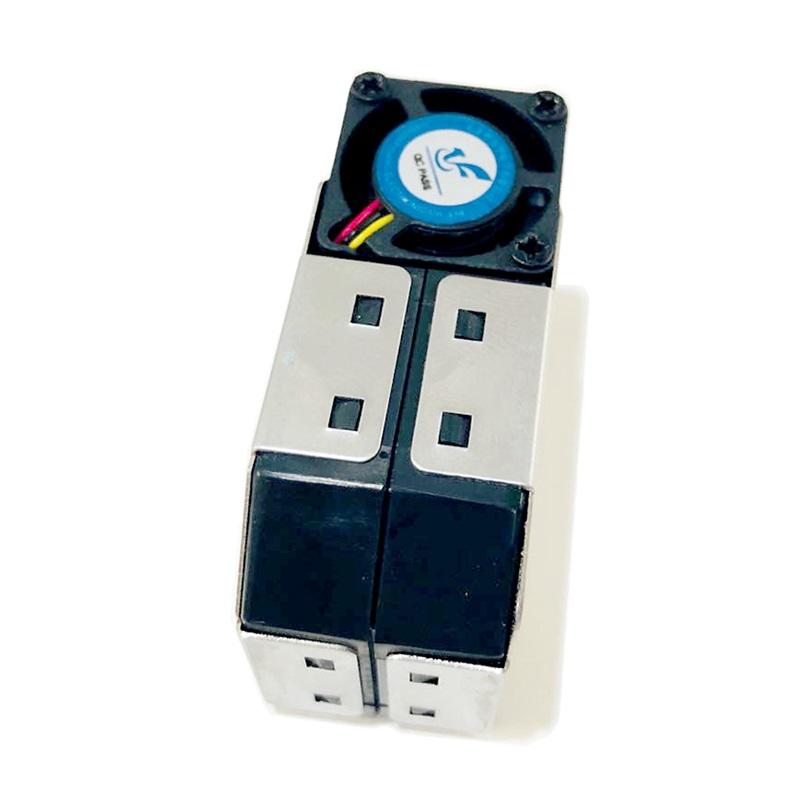

Laser PM2.5 Sensor
-
Price
Price on request ≥1piece
-
Model Number
TF-LP01 -
Data Sheet
-
Package
Original packaging -
Specs
TF-LP01 -
Quantity
- +Send Inquiry
Find Similar Products
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501A
MOQ：1
-
Dust Sensor Module for Air Quality Monitor
Model Number：DSM501B
MOQ：1
-
Alphasense PM2.5 Particle Sensor
Model Number：OPC-N2
MOQ：1
-
Compact Optical Dust Sensor
Model Number：GP2Y1010AU0F
MOQ：1
-
PM2.5 Particle Sensor
Model Number：OPC-R1
MOQ：1
-
PM2.5 Particle Sensor Dust sensor Laser sensor Atmospheric particle monitors
Model Number：OPC-N3
MOQ：1
Product Description
TF-LP01 Laser PM2.5 Sensor Description
TF-LP01 type laser particle sensor is a small module for detection of particles in the air with scattering principle. It features compact size, high accuracy, repeatablity and consistency, and strong resistance against interference. It adopts ultra-silent fan, and is able to response in real-time and collect data continuously. The sensors are 100% tested and calibrated in factory.
TF-LP01 Laser PM2.5 Sensor Features
• High accuracy
• Fast response
• Compact in size
TF-LP01 Laser PM2.5 Sensor Applications
• Air purifier, portable air quality detector, smart home, etc.
TF-LP01 Laser PM2.5 Sensor Technical index
TF-LP01 type laser particle sensor is a small module for detection of particles in the air with scattering principle. It features compact size, high accuracy, repeatablity and consistency, and strong resistance against interference. It adopts ultra-silent fan, and is able to response in real-time and collect data continuously. The sensors are 100% tested and calibrated in factory.
TF-LP01 Laser PM2.5 Sensor Features
• High accuracy
• Fast response
• Compact in size
TF-LP01 Laser PM2.5 Sensor Applications
• Air purifier, portable air quality detector, smart home, etc.
TF-LP01 Laser PM2.5 Sensor Technical index
|
Distinguishable particle |
PM1.0, PM2.5, PM10 |
|
Interface type |
USART (3.3V TTL level), PWM (customized) |
|
Measurement range |
0~999 ug/m³ |
|
Measurement accuracy |
±10 ug/m³ @ 0~99 ug/m³; ±10% @ 100~999 ug/m³ |
|
Mass concentration resolution |
1 ug/m³ |
|
Response time |
<10S |
|
Operating voltage |
DC5.0V (±0.1V) |
|
Operating current |
<100mA |
|
Operating temperature |
-10°C~50°C |
|
Operating humidity |
≤95%RH (non-condensation) |
|
Storage temperature |
-30°C~70°C |
|
Overall dimensions |
51 x 33 x 22mm |
