Korea Samyoung Relative Humidity Module HW2200 Description：
Based on the capacitive polymer RH Sensor developed by Samyoung S&C, HW2200 is a dedicated humidity transducer designed for OEM applications where a

reliable and accurate measurement is needed.

Direct interface with a micro-controller is made possible with the module’s linear voltage output


Korea Samyoung Relative Humidity Module HW2200  Specifications：
Small size product · Product free from Lead, Cr(6+), Cd and Hg
Humidity calibrated within +/-3% @55%RH
Typical 1 to 3.6 Volt DC output for 0 to 100% RH at 5Vdc supply
Ratiometric to voltage supply from 4.75Vdc to 5Vdc



Korea Samyoung Relative Humidity Module HW2200  Features：
Full interchangeability
High reliability and long term stability
Waterproof design(IP67)
Very low temperature dependence
Suitable for 3 to 10 Vdc supply voltage


Korea Samyoung Relative Humidity Module HW2200  Applications：

Industrial
Process control

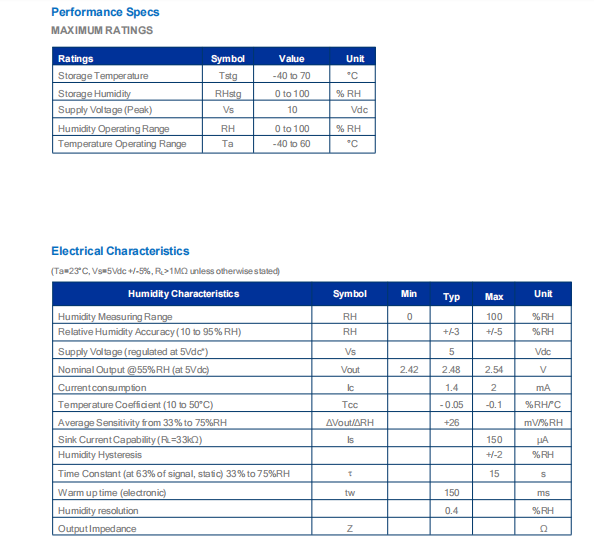

Korea Samyoung Relative Humidity Module HW2200  Performance Specs：
