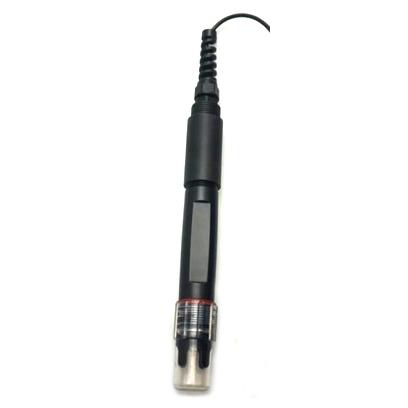

Integrated Industrial Online pH Transmitters

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    PHG-202

  • Data Sheet

  • Package

    Original packaging

  • Specs

    PHG-202

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

PHG-202 Online pH Transmitters Application environment

• For acid / base / salt solution, chemical reactions, industrial processes, it is possible to meet the most demanding requirements of industrial applications online PH measurement.
• Signal output: RS485 (Modbus / RTU protocol).
• Easy connection to a PLC, DCS, industrial control computer, universal controller, paperless recording instruments or touch screen and other third-party devices.
• Dual high-impedance differential amplifier, strong anti-jamming, fast response.
• The patented pH probe, the internal reference at least 100KPa (1Bar) pressure than the extremely slow oozing fluid from the porous salt bridge, the forward oozing continued for 20 months. Such a system is very stable reference electrode life more than doubled to extend common electrode industry.
• Easy Installation: 3/4 inch NPT (pipe thread) for mounting on pipes and tanks. Probe and a display portion can be separated via a cable connection.
• IP68 protection grade.


PHG-202 Online pH Transmitters Technical parameters

Model
  PHG-202
Measuring range
  0 ~ 14pH
Resolution
  0.01pH
Accuracy
  ±0.01pH
Working temperature
  0 ~ 65℃
Working pressure
  < 0.2MPa
Temp com
  N(NTC)
Power supply
  12VDC ~ 24VDC ±10%
Output signal
  RS485( Modbus /RTU)
Wetted
  PPR
Mounting
  3/4 "NPT thread, immersion mounting
Cable length
  5m, other lengths can be customized
Calibration method
  Two-point calibration
Protection
  class IP68
