Integrated Industrial Dissolved Oxygen Sensor
-
Price
Price on request ≥1piece
-
Model Number
DOG-202/DOG-203 -
Data Sheet
-
Package
Original packaging -
Specs
DOG-202/DOG-203 -
Quantity
- +Send Inquiry
Find Similar Products
-
Laboratory Dissolved Oxygen Sensor
Model Number：DO1200
MOQ：1
-
Submersible Galvanic Dissolved Oxygen Sensor
Model Number：DO6400/DO7400 Series
MOQ：1
-
UVT-LED Sensor UV Transmittance Sensor
Model Number：UVT-LED
MOQ：1
-
4-20mA Dissolved Oxygen Transmitters
Model Number：DOMA-10/DOMA-20
MOQ：1
-
Dissolved Oxygen Sensor for Oxygen Measurement
Model Number：SE 706
MOQ：1
-
Memosens Oxygen Sensor
Model Number：SE 715
MOQ：1
Product Description

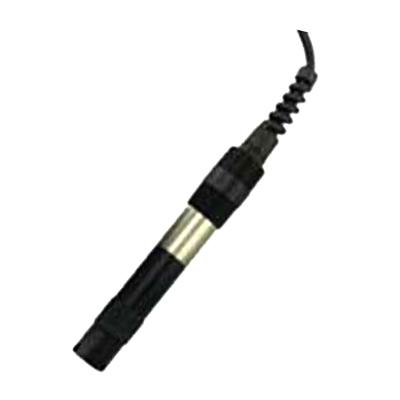

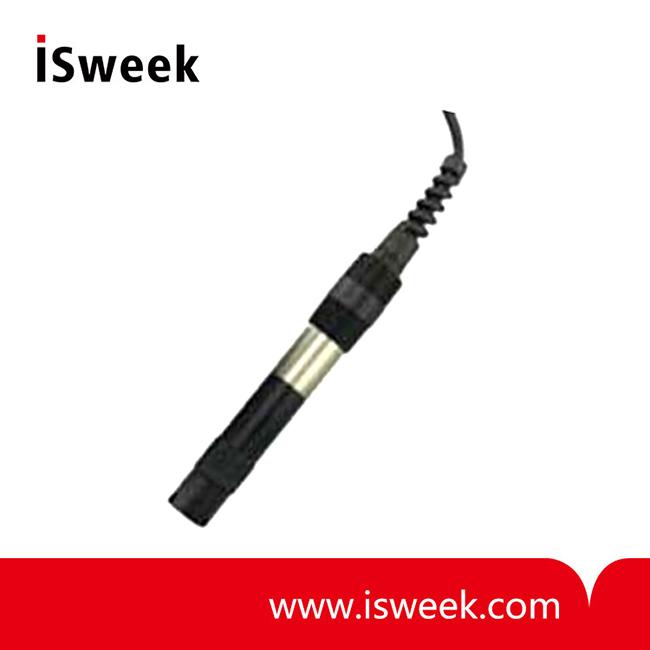

DOG-200 series integrated oxygen sensor (membrane / polarography)
This product is one of the dissolved oxygen transmitter, protection class IP65 / IP68, can be installed directly into the formula, suitable for all occasions need to measure dissolved oxygen, such as water treatment, aquaculture and other industries.
DOG-202/DOG-203 Dissolved Oxygen Sensor Technical Specifications
| Model | DOG-200 |
|
Measuring
range |
0 ~ 19.99mg/L |
|
Resolution |
0.01mg/L |
|
Accuracy |
±2%F.S. |
|
Power supply |
DOG-202: 12VDC~24VDC ±10%
DOG-203: 24VDC ±10%
|
|
Output signal |
DOG-202:Rs485(Modbus/RTU)
DOG-203:4～20mA Two wire isolation (signal)
|
|
Installation |
3/4" NPTthread |
