Product Description

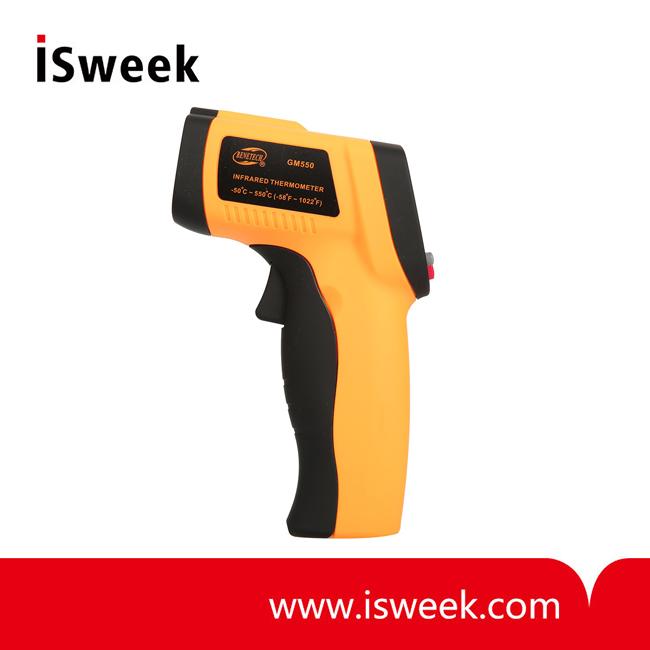

GM550 Infrared Thermometer Description
This GM550 infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Functions:
1. Celsius / Fahrenheit switchable
2. Equipped with a laser for aiming
3. Temperature hold
4. LCD backlight
5. 7 seconds auto power off
6. Light weight and easy operation
GM550 Infrared Thermometer Specification
This GM550 infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Functions:
1. Celsius / Fahrenheit switchable
2. Equipped with a laser for aiming
3. Temperature hold
4. LCD backlight
5. 7 seconds auto power off
6. Light weight and easy operation
GM550 Infrared Thermometer Specification
|
Temperature range |
-50 ~ 550°C (-58 ~ 1022°F) |
|
Accuracy |
0°C~550°C (32°F~1022°F): ±1.5°C (±2.7°F) or ±1.5% -50°C~0°C (-58°F~32°F): ±3°C (±5°F) Whichever is greater |
|
Resolution |
0.1°C or 0.1°F |
|
Repeatability |
1% of reading or 1°C |
|
Response time |
500 mSec, 95% response |
|
Spectral response |
8-14 um |
|
Emissivity |
0.95 Preset |
|
Distance to Spot size |
12:1 |
|
Operating Temperature |
0 ~40°C (32 ~ 104°F) |
|
Operating Humidity |
10~95%RH non-condensing, up to 30°C(86°F) |
|
Storage Temperature |
-20 ~ 60°C (-4~140°F) |
|
Power |
9V Alkaline or NiCd battery |
|
Typical battery life (Alkaline) |
Non-laser mode: 22 hrs; Laser models: 12 hrs |
|
Weight |
147.5g |
| Dimension | 153 x 101 x 43mm |
