Product Description

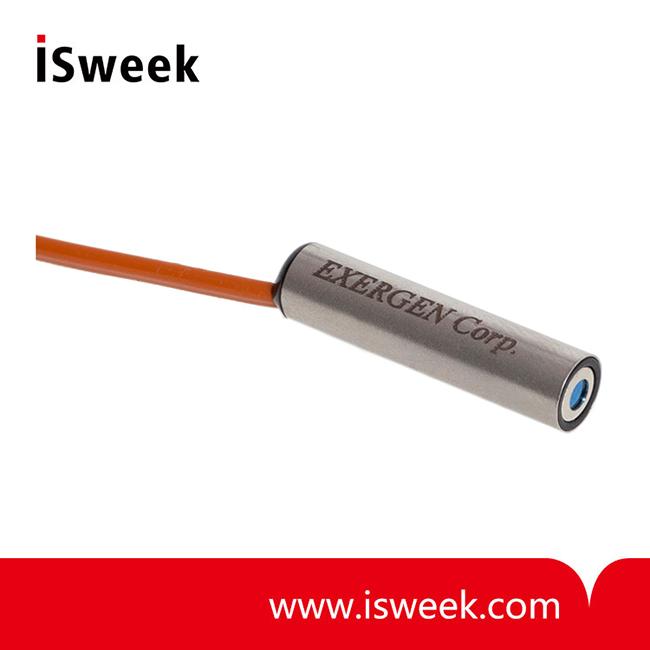

Micro IRt/c Infrared Temperature Sensors Features
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0003°C
• Small Size

Micro IRt/c Infrared Temperature Sensors Technical Data
Sensing Range
 0 to 975°F (-18 to 524°C)
Ambient Temperature Range
 -29 to 185°F (-20 to 85°C) permanent
-29 to 212°F (-20 to 100°C) non permanent.
Air Purge jacket available for cooling to 347°F (175°C)
Optimum Range Selections
 Eight models per t/c type (see Temperature Selection Chart)
Field of View
 approximately 1:2 (110°)
Minimum Spot Size
 .1" (3mm)
Spectral Response
 5.5 to 20µm
Output Impedance
 17 - 45 Kohms
Response Time
 50 Milliseconds
Dimensions
 0.25" (6.3mm) Dia. x 1.0" (25.4mm)
Housing
 Stainless Steel, Hermetically sealed, exceeds NEMA 4X, IP67
Cable
 3 feet of unsheilded, duplex insulated, type K, 24
AWG, PFA jacket rated to 500° F (260°C) (Shielded
cable available upon request)
Weight
 Approximately 1oz. (30 grams) with cable
Input Device Compatibility
 It is recommended to use input devices with less than 1 nA
of leakage current to minimize offsets, and sensor break
detection should be set to 45 Kohm maximum.
