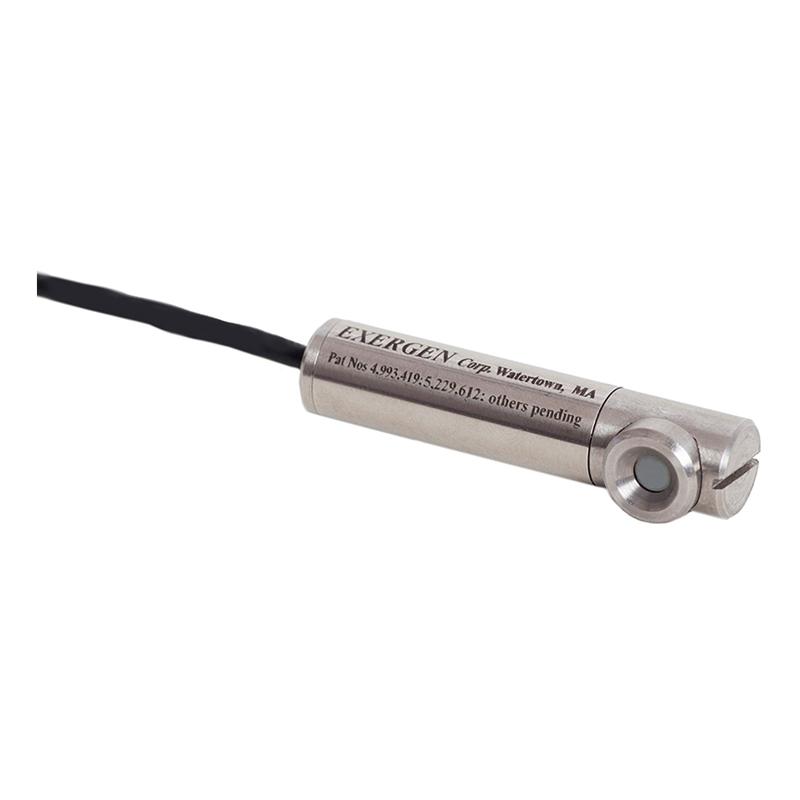

Infrared Temperature Sensors
-
Price
Price on request ≥1piece
-
Model Number
IRt/c.SV -
Data Sheet
-
Package
Original packaging -
Specs
IRt/c.SV -
Quantity
- +Send Inquiry
Find Similar Products
-
Thermopile Infrared Temperature Sensor Module
Model Number：TSEV01CL55
MOQ：1
-
Infrared Thermopile Temperature Sensor
Model Number：TS318-1B0814
MOQ：1
-
Assembled Armored Platinum Resistor
Model Number：WZPKK Series
MOQ：1
-
Armored Thermocouple
Model Number：WR Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Integrated Temperature Transmitter
Model Number：WBZPKK-&WXBZPKK- Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Thermocouple Integrated Temperature Transmitter
Model Number：WBR&WXBR Series
MOQ：1
Product Description
IRt/c.SV Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.SV Infrared Temperature Sensors Technical Data
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.SV Infrared Temperature Sensors Technical Data
|
Sensing Range |
-50 to 1200°F (-45 to 650°C) |
|
Ambient Temperature Range |
0 to 212°F (-18 to 100°C) |
|
Optimum Range Selections |
Eight models per t/c type (see Temperature Selection Chart) |
|
Field of View |
approximately 1:1 (60°) |
|
Minimum Spot Size |
.3" (8mm) |
|
Spectral Response |
6.5 to 14µm |
|
Output Impedance |
3 Kohms approx |
|
Response Time |
100 Milliseconds |
|
Dimensions |
2.77" x 0.50" Dia. (57.8 x 12.7 mm) |
|
Housing |
Stainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, cable shield grounded to housing and electrically isolated from signal |
|
Cable |
Twisted shielded pair of base thermocouple material (J,K,E,T), 3ft (.9m) std lenght, Telfon sheated, reated to 392°F (200°C) continuous service |
|
Weight |
1.4oz. (40 grams) with cable |
