Infrared Temperature Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    IRt/c.10

  • Data Sheet

  • Package

    Original packaging

  • Specs

    IRt/c.10

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

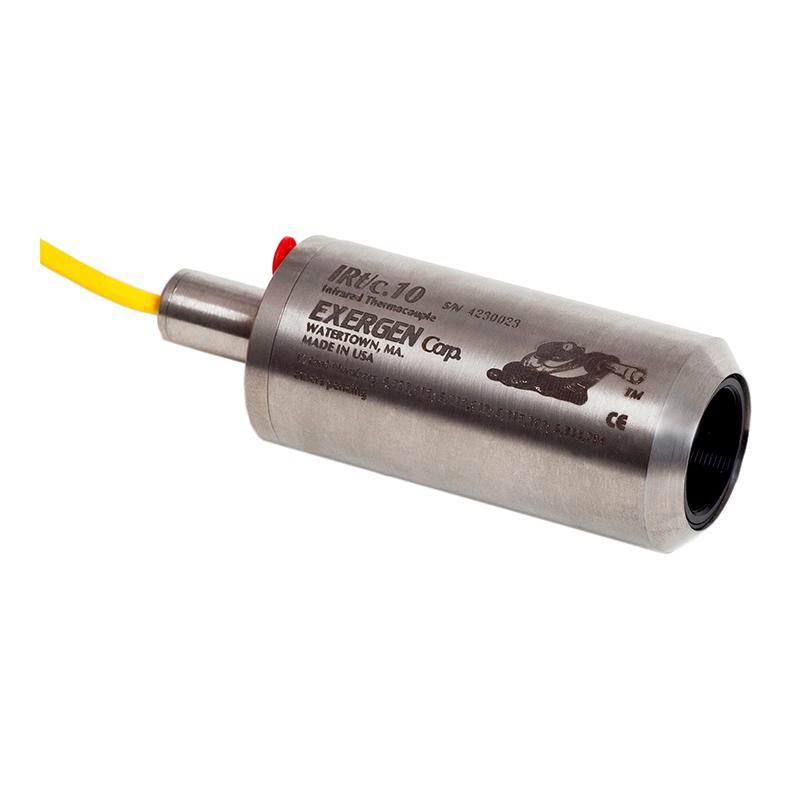

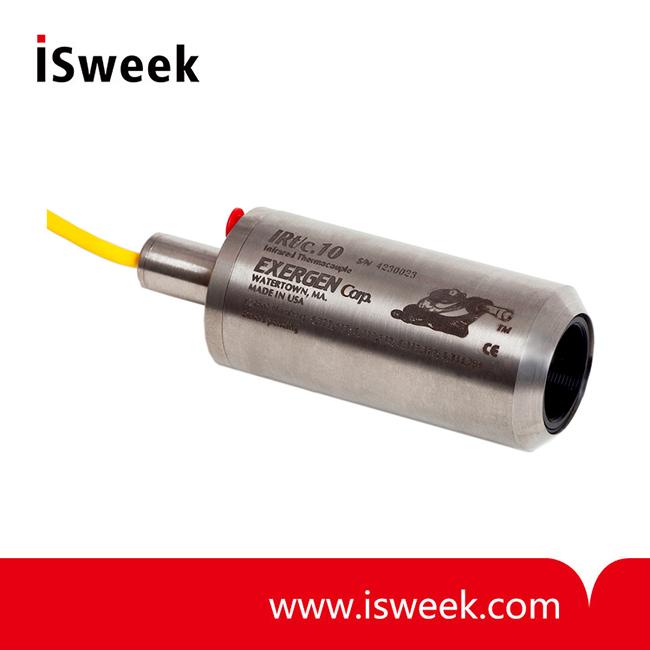

IRt/c.10 Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size

IRt/c.10 Infrared Temperature Sensors Technical Data
Sensing Range
 -50 to 1200°F (-45 to 650°C)
Ambient Temperature Range
 0 to 400°F (-18 to 200°C)
Optimum Range Selections
 Eight models per t/c type (see Temperature Selection Chart)
Field of View
 approximately 10:1 (6°)
Minimum Spot Size
 .8" (20mm)
Spectral Response
 6.5 to 14µm
Output Impedance
 4 to 8 Kohms approx
Response Time
 100 Milliseconds
Dimensions
 3.76" x 1.375" Dia. (96 x 35mm)
Housing
 Stainless steel, hermetically sealed, exceeds NEMA 4,4X;
IP65, 67, cable shield grounded to housing and electrically
isolated from signal
Cable
 Twisted shielded pair of base thermocouple material (K),
3ft (.9m) std lenght, Telfon sheated, reated to 392°F (200°C)
continuous service
Weight
 6.5oz. (184 grams) with cable
Air Purge
 Built-in; designed for severe paint or ink environment;
3' (0.9 m) of tubing provided
