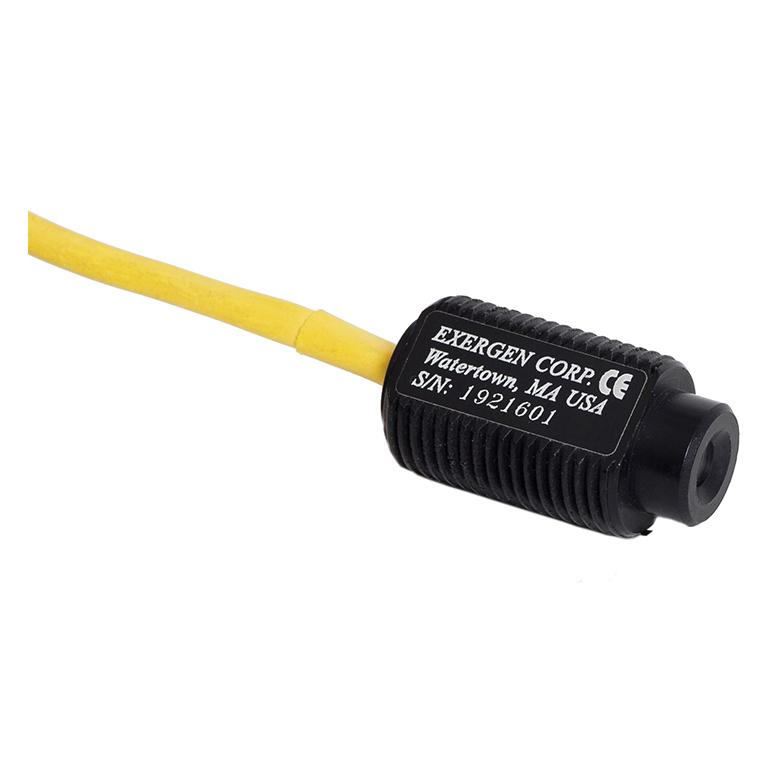

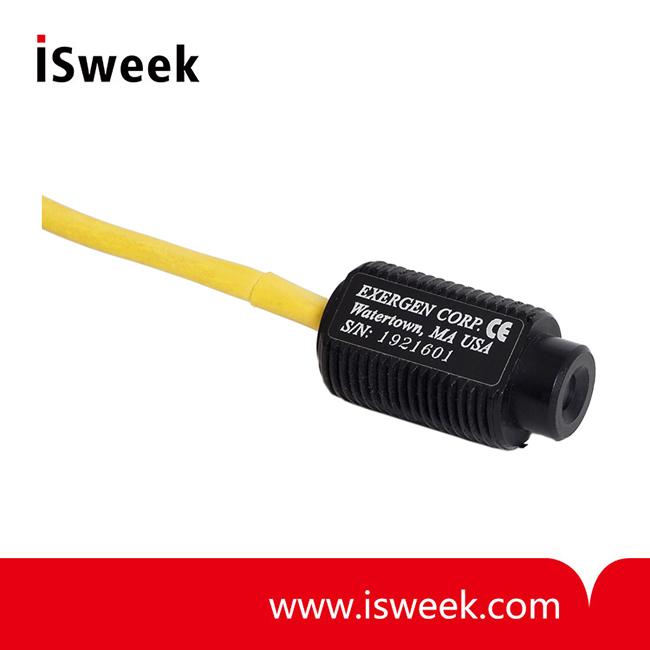

Infrared Temperature Sensors
-
Price
Price on request ≥1piece
-
Model Number
IRt/c.03 -
Data Sheet
-
Package
Original packaging -
Specs
IRt/c.03 -
Quantity
- +Send Inquiry
Find Similar Products
-
Thermopile Infrared Temperature Sensor Module
Model Number：TSEV01CL55
MOQ：1
-
Infrared Thermopile Temperature Sensor
Model Number：TS318-1B0814
MOQ：1
-
Assembled Armored Platinum Resistor
Model Number：WZPKK Series
MOQ：1
-
Armored Thermocouple
Model Number：WR Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Integrated Temperature Transmitter
Model Number：WBZPKK-&WXBZPKK- Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Thermocouple Integrated Temperature Transmitter
Model Number：WBR&WXBR Series
MOQ：1
Product Description
IRt/c.03 Infrared Temperature Sensors Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.03 Infrared Temperature Sensors Technical Data
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically Safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Small Size
IRt/c.03 Infrared Temperature Sensors Technical Data
|
Sensing Range |
-50 to 550°F (-45 to 290°C) |
|
Ambient Temperature Range |
0 to 160°F (-18 to 70°C) |
|
Optimum Range Selections |
Eight models per t/c type (see Temperature Selection Chart) |
|
Field of View |
approximately 3:1 (17°) |
|
Minimum Spot Size |
.25" (6mm) |
|
Spectral Response |
6.5 to 14µm |
|
Output Impedance |
4 to 8 Kohms approx |
|
Response Time |
100 Milliseconds |
|
Dimensions |
1.28" x .71" Dia. (32.5 x 20mm) |
|
Housing |
High strength ABS, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, intrinsically safe. Two locknuts supplied |
|
Cable |
Thermocouple extension grade, PVC jacket, unshielded |
|
Weight |
1.4oz. (40 grams) with cable |
