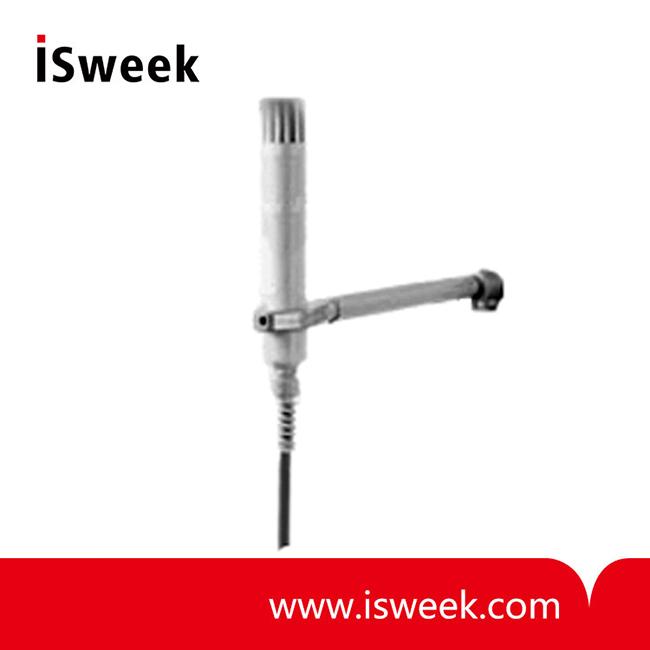

Indoor Thermoigrometric Sensor
-
Price
Price on request ≥1piece
-
Model Number
UTAI -
Data Sheet
-
Package
Original packaging -
Specs
UTAI -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description

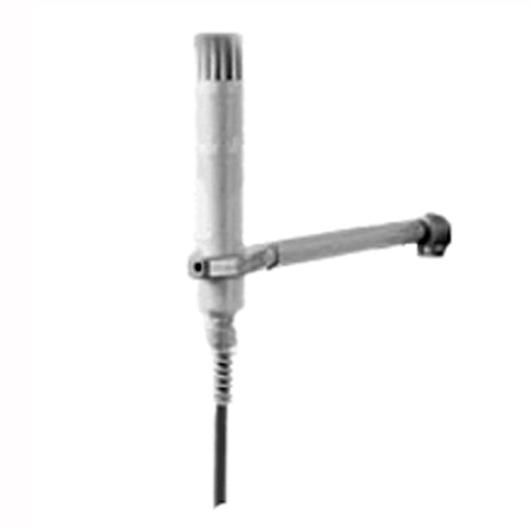

UTAI Indoor Thermoigrometric Sensor DESCRIPTION
Sensor made of plastic material for the measurement of indoor temperature and humidity. Its small size allows use in hidden conditions.
Temperature: RTD sensing element 1/3DIN Pt100, connection with a four-wire.
Relative Humidity: Sensor for air relative humidity measurement made of a thin film that changes the capacity in linear mode with the air humidity.
Electrical signal output in current or voltage (4 to 20mA or 0 - 1Vdc) or RS485/ModBus for applications
UTAI Indoor Thermoigrometric Sensor Highlihted specs
• Accurated and reliable Air Humidity & Temperature Sensor
• Very limited dimensions and weight
• Measure with high precision capacity and RTD Pt100
• According to CE norms
UTAI Indoor Thermoigrometric Sensor Technical Data
UTAI Indoor Thermoigrometric Sensor Order Form
example of order code
* specify the length for no standard measures
Sensor made of plastic material for the measurement of indoor temperature and humidity. Its small size allows use in hidden conditions.
Temperature: RTD sensing element 1/3DIN Pt100, connection with a four-wire.
Relative Humidity: Sensor for air relative humidity measurement made of a thin film that changes the capacity in linear mode with the air humidity.
Electrical signal output in current or voltage (4 to 20mA or 0 - 1Vdc) or RS485/ModBus for applications
UTAI Indoor Thermoigrometric Sensor Highlihted specs
• Accurated and reliable Air Humidity & Temperature Sensor
• Very limited dimensions and weight
• Measure with high precision capacity and RTD Pt100
• According to CE norms
UTAI Indoor Thermoigrometric Sensor Technical Data
|
Temperature |
|
|
Temperature typical range |
-40 ~ +80°C |
|
Temperature resolution |
0.015°C |
|
Temperature accuracy |
DIN 43760 1/3DIN (±0.1°C @ 0°C) |
|
Temperature response time |
< 60 s |
|
Type of transducer |
1/3DIN platinum resistance Pt100 (100Ω @ 0°C) |
|
Humidity |
|
|
Humidity typical range |
0 ~ 100%Rh |
|
Humidity resolution |
0.1% |
|
Humidity accuracy |
± 2% f.s. |
|
Humidity response time |
< 100sec (10÷80%RH) |
|
Humidity measure type of transducer |
capacitive |
|
Signal out |
N: 0 - 1 Vdc(Rh) & Pt100 (T); A: 0 - 1 Vdc(Rh +T); B: 4 - 20mA (Rh+T) ; C: RS485 /ModBus |
|
Working conditions |
-40 ~ +80°C |
|
Power supply |
10 - 28Vdc |
|
Current consumption |
< 0.5W (UTAI-B) |
|
Weight |
<100g |
UTAI Indoor Thermoigrometric Sensor Order Form
|
Sensor |
Indoor Temperature and Relative Humidity Sensor |
UTAI |
A B C N |
05 10 xx |
SSM |
|
| Output |
Temperature 0 - 1Vdc 4 - 20mA RS485 / Modbus natural : Pt100 |
Humidity 0 - 1Vdc 4 - 20mA RS485 / Modbus 0 - 1Vdc |
|
|||
|
Accessories |
CS05 – Cable 5m sensor-datalogger CS10 – Cable 10m sensor-datalogger CSxx – Cable xx* m length sensor – datalogger |
|||||
|
Arm support for stylus sensors for wall mounting |
||||||
example of order code
|
UTAI |
A | 10 | SSM |
* specify the length for no standard measures
