Product Description

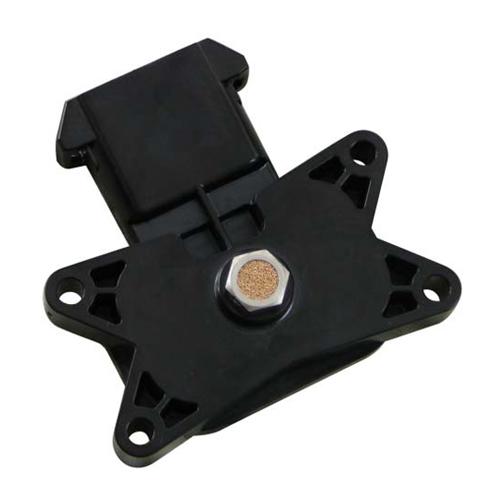

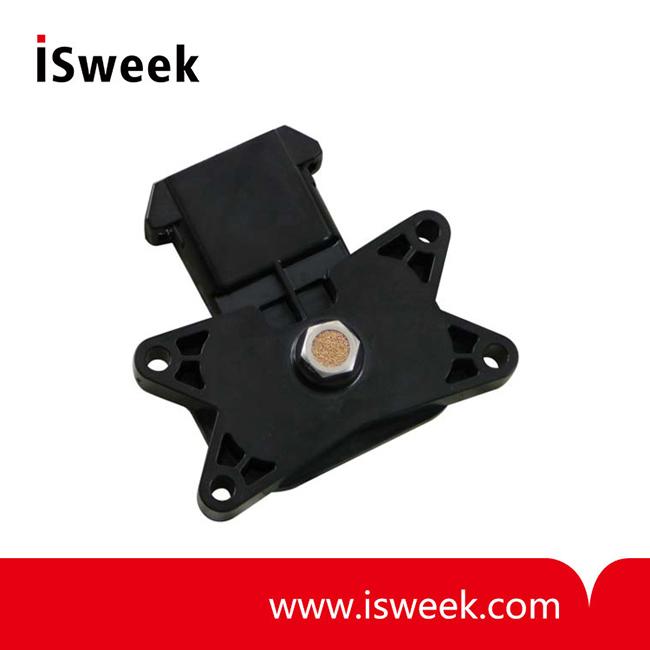

SenseH2-R Hydrogen Sensor (H2 Sensor) Features
• High sensitivity and selectivity to hydrogen
• Fast response and recovery times
• Immune to signal saturation
• Robust to widely varying ambient flow rates
• Compact and rugged design
• 1.0 to 4.5V output, spans 0.25 to 4.0% H2 in air (5 to 100% LFL)

SenseH2-R Hydrogen Sensor (H2 Sensor) Intended Uses:
The NTM SenseH2-R is intended for use as a hydrogen gas detector in the range of 0.25 to 4% hydrogen in air. This sensor is tolerant to halogen gasses commonly found in refrigerant gases and fire suppression systems.

SenseH2-R Hydrogen Sensor (H2 Sensor) Typical applications include:
• Uninterruptible power supply (UPS) systems monitoring,
• Telecom systems monitoring Stationary fuel cells ,
• Laboratory monitoring
• Motive power charging stations

SenseH2-R Hydrogen Sensor (H2 Sensor) Table of Typical Characteristics:

Metric
 Min
 Max
 Units
Characteristics:


        H2 range (in air)
 0.25 4.0 %
        Voltage input
 12 24 Vdc
        Output (sensing range)
 1.0 4.5 Vdc
        Error state (output signal)
 0.0 0.75 Vdc
        Error state (output signal)
 4.75 5.00 Vdc
        Power consumption (25°C)
 0.10 0.15 A
        Response time (T90)
 —
 5 Sec.
        Recovery time (T10)
 —
 5 Sec.
Environmental Conditions:


        Ambient temperature
 -20 80 °C
        Relative humidity
 5 95 %R.H.
        Linear flow rate
 0.02 5.00 m/sA
