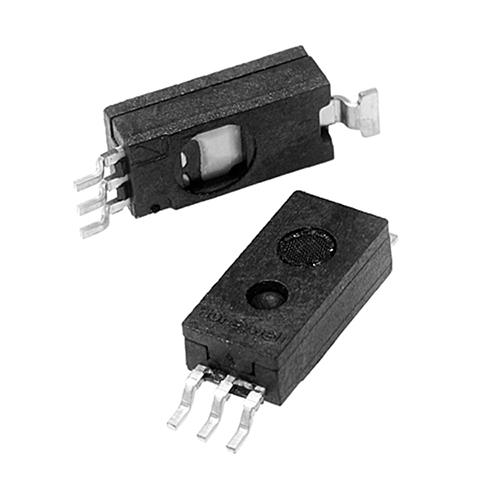

Honeywell HIH-4030/31 Series Humidity Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    HIH-4030,HIH-4031

  • Data Sheet

  • Package

    Original packaging

  • Specs

    HIH-4030,HIH-4031

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

DESCRIPTION

Honeywell has expanded our HIH Series to include an SMD (Surface Mount Device) product line: the new HIH-4030/4031.


The HIH 4030/4031 complements our existing line of non-SMD humidity sensors. SMD packaging on tape and reel allows for use in high volume, automated pick and place manufacturing, eliminating lead misalignment to printed circuit board throughhole.


The HIH-4030/4031 Series Humidity Sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users.


Direct input to a controller or other device is made possible by this sensor’s near linear voltage output. With a typical current draw of only 200 μA, the HIH-4030/4031 Series is often ideally suited for low drain, battery operated systems.


Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Individual sensor calibration data is available.


The HIH-4030/4031 Series delivers instrumentation-quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SMD.

The HIH-4030 is a covered integrated circuit humidity sensor. The HIH-4031 is a covered, condensation-resistant, integrated circuit humidity sensor that is factory-fitted with a hydrophobic filter allowing it to be used in condensing environments including industrial, medical and commercial applications.

The RH sensor uses a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning.

The sensing element's multilayer construction provides excellent resistance to most application hazards such as condensation, dust, dirt, oils and common environmental chemicals. Sample packs are available. See order guide.


FEATURES
• Tape and reel packaging allows for use in high volume pick and place manufacturing (1,000 units per tape and reel)
• Molded thermoset plastic housing
• Near linear voltage output vs %RH
• Laser trimmed interchangeability
• Low power design
• Enhanced accuracy
• Fast response time
• Stable, low drift performance
• Chemically resistant

POTENTIAL APPLICATIONS
• Refrigeration equipment
• HVAC (Heating, Ventilation and Air Conditioning) equipment
• Medical equipment
• Drying
• Metrology
• Battery-powered systems
• OEM assemblies


PERFORMANCE SPECIFICATIONS (At 5 Vdc supply and 25 ºC [77 ºF] unless otherwise noted.)

Parameter

Minimum

Typical

Maximum

Unit

Specific Note

Interchangeability (first order curve)

–

–

–

–

–

   0% RH to 59% RH

-5

–

5

% RH

–

   60% RH to 100% RH

-8

–

8

% RH

–

Accuracy (best fit straight line)

-3.5

–

+3.5

% RH

1

Hysterisis

–

3

–

% RH

–

Repeatability

–

±0.5

–

% RH

–

Settling time

–

–

70

ms

–

Response time(1/e in slow moving air)

–

5

–

s

–

Stability (at 50% RH in a year)

–

±1.2

–

% RH

2

Stability (at 50% RH in a year)

–

±0.5

–

% RH

3

Voltage supply

4

–

5.8

Vdc

4

Current supply

–

200

500

μA

–

Voltage output (1st order curve fit)

VOUT=(VSUPPLY)(0.0062(sensor RH) + 0.16), typical at 25 ºC

Temperature compensation

True RH = (Sensor RH)/(1.0546 – 0.00216T),T in ºC

Output voltage temp.coefficient at 50% RH, 5 V

–

-4

–

mV/ºC

–

Operating temperature

-40[-40]

See Figure 1.

85[185]

ºC[ºF]

–

Operating humidity (HIH-4030)

0

See Figure 1.

100

% RH

5

Operating humidity (HIH-4031)

0

See Figure 1.

100

% RH

–

Storage temperature

-50[-58]

–

125[257]

ºC[ºF]

–

Storage humidity

See Figure 2.

% RH

5
