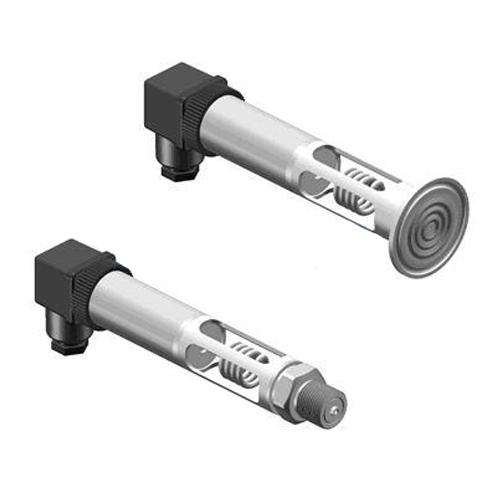

High Temperature Pressure Transmitter
-
Price
Price on request ≥1piece
-
Model Number
JYB-KO-GW -
Data Sheet
-
Package
Original packaging -
Specs
JYB-KO-GW -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
JYB-KO-GW High Temperature Pressure Transmitter Introduction
• Pressure control in high and middle temperature industrial process
• Water treatment engineering, petroleum and chemical industry
• Food, medicine, brewing, latex, aviation field
JYB-KO-GW High Temperature Pressure Transmitter Characteristic
• Whole stainless steel laser welding, excellent anticorrosion and shock resistance
• Has a wide temperature measuring range, very mini pressure value error
• Work stable and strong anti-interference capability
• Double diaphragm structure design
• Many process connect ways such as level film structure or thread
• Prevent the surge voltage, reverse polarity over-voltage and over-current protection
• Wide measurement medium range and high reliability
JYB-KO-GW High Temperature Pressure Transmitter Parameters
• Pressure control in high and middle temperature industrial process
• Water treatment engineering, petroleum and chemical industry
• Food, medicine, brewing, latex, aviation field
JYB-KO-GW High Temperature Pressure Transmitter Characteristic
• Whole stainless steel laser welding, excellent anticorrosion and shock resistance
• Has a wide temperature measuring range, very mini pressure value error
• Work stable and strong anti-interference capability
• Double diaphragm structure design
• Many process connect ways such as level film structure or thread
• Prevent the surge voltage, reverse polarity over-voltage and over-current protection
• Wide measurement medium range and high reliability
JYB-KO-GW High Temperature Pressure Transmitter Parameters
| Measuring range |
screw type: any range within 0～2MPa clamp: any range within 100kPa～2MPa |
| Environment temperature | -20°C～85°C |
| Power supply | DC 24V (12V～32V) |
| Over load pressure | two times of range |
| Output | 4～20mA, 0～10mA; 0～5V |
| Accuracy class | grade 0.2 (range from 70kPa to 2MPa ) limit to screw type |
| grade 0.5 (range from 100kPa to 2MPa ) | |
| Nonlinear | ± 0.2％F.S |
| Electrical connection | Horsman interface |
| Medium temperature |
screw type: -30°C～200°C clamp: -30°C～300°C |
| Response time | ≤ 50ms |
| Load capacity |
current mode ≤500Ω voltage mode ≥3kΩ |
| Repeatability | ± 0.1％F.S |
| Long-term stability | ± 0.1％F.S/y |
| Nonlinear | ± 0.2％F.S |
| Thermal zero drift | ± 0.02％F.S/°C |
| Measuring medium | oil, water, gas and other compatible with stainless steel medium |
| IP grade | IP 65 |
| Weight | about 330g (screw type) 360g (clamp) |
