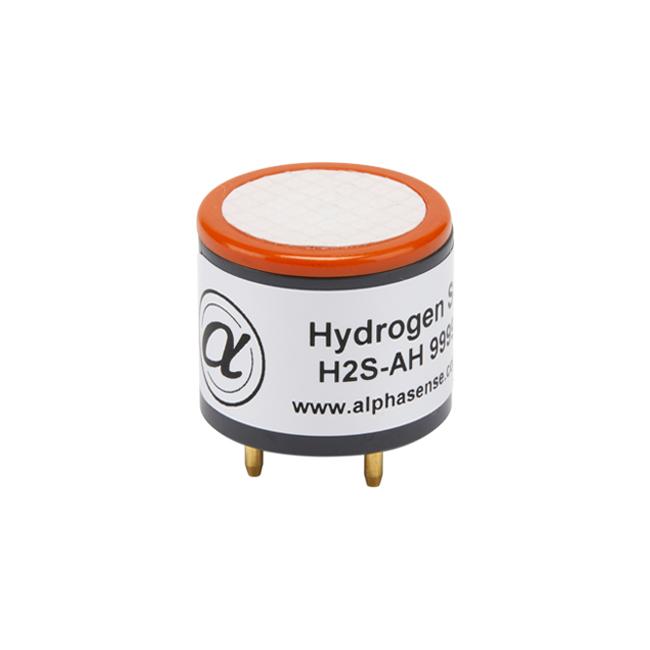

High Sensitivity Hydrogen Sulfide Sensor (H2S Sensor)

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    H2S-AH

  • Data Sheet

  • Package

    Original packaging

  • Specs

    H2S-AH

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) Description
Alphasense Hydrogen Sulfide gas sensors operate using well-known fuel cell technology.

H2S-AH Hydrogen Sulfide Sensor size:
20mm diameter, the industry standard size for portable gas detectors

With very high sensitivity and low zero, accurate and stable readings are possible when measuring current concentration ranges from ppb to 1% H2S.

H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) PERFORMANCE
Sensitivity
 nA/ppm in 20ppm H2S
 950 to 1450
Response time
 t90 (s) from zero to 20ppm H2S
 < 30
Zero current
 ppm equivalent in zero air
 < ± 0.2
Resolution
 RMS noise (ppm equivalent)
 < 0.03
Range
 ppm H2S limit of performance warranty
 50
Linearity
 ppm error at full scale, linear at zero and 20ppm H2S
 0 to -2.5
Overgas limit
 maximum ppm for stable response to gas pulse
 250



H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) LIFETIME
Zero drift
 ppm equivalent change/year in lab air
 < 0.05
Sensitivity drift
 % change/year in lab air, monthly test
 < 2
Operating life
 months until 80% original signal  (24 month warranted)
 > 24



H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) ENVIRONMENTAL
Sensitivity @ -20°C
 % (output @ -20°C/output @ 20°C) @ 20ppm
 80 to 92
Sensitivity @ 50°C
 % (output @ 50°C/output @ 20°C) @ 20ppm
 100 to 110
Zero @ -20°C
 ppm equivalent change from 20°C
 < ± 0.5
Zero @ 50°C
 ppm equivalent change from 20°C
 < 0.5 to -2



H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) CROSS SENSITIVITY
NO2   sensitivity
 % measured gas @ 10ppm NO2
 < -30
Cl2     sensitivity
 % measured gas @ 10ppm Cl2
 < -25
NO     sensitivity
 % measured gas @ 50ppm NO
 < 2
SO2   sensitivity
 % measured gas @ 20ppm SO2
 < 10
CO     sensitivity
 % measured gas @ 400ppm CO
 < 1.5
H2     sensitivity
 % measured gas @ 400ppm H2
 < 0.15
C2H4 sensitivity
 % measured gas @ 400ppm C2H4
 < 0.15
NH3   sensitivity
 % measured gas @ 20ppm NH3
 < 0.1



H2S-AH Hydrogen Sulfide Sensor (H2S Sensor) KEY SPECIFICATIONS
Temperature range
 °C
 -30 to 50
Pressure range
 kPa
 80 to 120
Humidity range
 % rh continuous
 15 to 90
Storage period
 months @ 3 to 20℃ (stored in sealed pot)
 6
Load resistor
 Ω (recommended)
 10 to 47
Weight
 g
 < 6


Matched Transmitter board for H2S-AH H2S Sensor

4-20mA Digital Transmitter Board
   • Factory calibration, custom-set for immediate use
   • Digital zero, sensitivity and temperature compensation
   • Digital and 4-20mA output
   • Biased or unbiased operation
   • Calibration and range change
