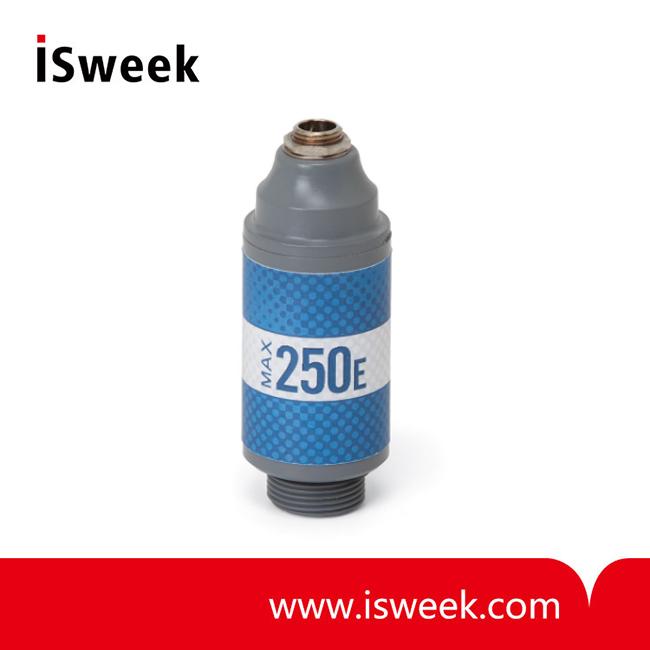

High Quality O2 Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

High Quality O2 Sensors（MAX-250E）Specifications：

Output	10.0 to 15.5 mV in air at 1013 millibar pressure and a temperature range of 23±2℃
Operating Temperature	5℃ to 40℃
Maximum Storage Temperature	-15℃ to 50 ℃
Optimal Storage Temperature	5℃ to 25℃
Range of Measurement (Full Scale)	0 to 100% oxygen
Zero Offset	Less than or equal to 0.50 mV when exposed to 99.9% to 100% nitrogen
90% Response Time	Less than or equal to 15 seconds at 23±2℃
Linearity	Within ± 1.0% of full scale
Stability	Less than 1% of full scale over an 8 hour period at constant temperature,pressure,and humidity
Temperature Compensation	Less than ± 3.0% from 15℃ to 40℃
Expected Life	>1,500,000% oxygen hours under normal operating conditions
Humidity	5% to 95% Relative Humidity non-condensing

High Quality O2 Sensors（MAX-250E）Interference：

• Less than 2% of full scale in presence of 75% Nitrous oxide 

• Less than 2% of full scale in presence of 5% Halothane

• Less than 2% of full scale in presence of 5% Isoflurane 

• Less than 2% of full scale in presence of 5% Enflurane

• Less than 2% of full scale in presence of 6% Sevoflurane

• Less than 2% of full scale in presence of 15% Desflurane

• Less than 2% of full scale in presence of 10% Caebon Dioxide 

• Less than 2% of full scale in presence of 70% Helium

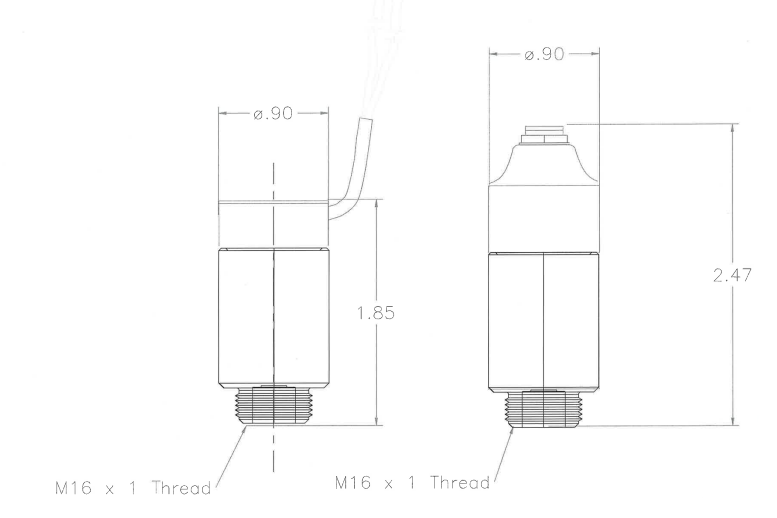

High Quality O2 Sensors（MAX-250E） Size：
