High Frequency Field Intensity Meter

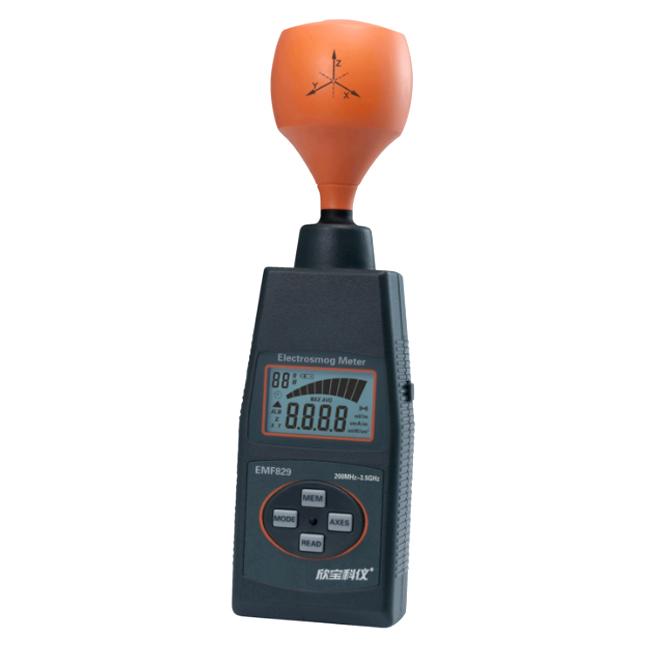

High Frequency Field Intensity Meter EMF829

The meter is using for detecting high frequency radiation from 50MHz to 3.5GHz, it has all-aspect electric field's test and high sensitivity. It can use for measuring the electric field strength and magnetic field strength of TEM cells and absorber rooms.

The meter can display the instantaneous measurement value, the MAX measurement value and average measurement value. The instantaneous measurement value can use for directional measurement, for example: when you go to the exposed zone first.

Metrical ways: digit display,measuring with three axes
Characteristic of directivity: all-aspect,three axes
Resolutin displayed: 0.1mV/m, 0.1uA/m, 0.1uW/M2
Reaction time: about 1 second(the measurement value is from 0 to 90%)
Refresh rate displayed: about 0.5 second
Display format: LCD,4 digits
Alarm: buzzer
Units: mV/m, V/m, uA/m, mA/m, uW/m², mW/m², uW/cm²
Displayed value: the instantaneous measurement value, the MAX measurement value, average measurement value and the maximum averaging value
Warning function: you can adjust the setting value and you also can open the function or close it.
Manual memory and reading data content: 99 groups
Power: 4 x 1.5V AA battery
Operating environment:
  Temperature: 0-50℃ (32-122°F)
  Relative humidity: ≤80%RH
Dimensions and weight: 261L x 73W x 38H(mm)
