Product Description

HF Resistant Laboratory pH Electrodes


Item No.: S350CDHF, S353CDHF, S354CDHF, S450CDHF


HF Resistant Laboratory pH Electrodes Features
• Resist attack and etching from HF (up to 2% v/v)
• Resist coating and fouling
• Compatible with any pH meter

HF Resistant Laboratory pH Electrodes Description

The specification sheet serves as an addendum to the pH LabSpecs sheet and covers all lab pH electrodes suitable for use in hydrofluoric acid.

Specifications differences for use in hydrofluoric acid (HF) are shown in SPECIFICATIONS section below. Please note 2 major differences as compared to standard electrodes. First, pH range is 0-12 not 0-14. Second, the temperature range is 0-50 deg C.

This series of electrodes are compatible with any lab or portable pH meter. Calibration of these electrodes is as normal with any standard pH electrode using standard pH buffer solutions.


HF Resistant Laboratory pH Electrodes Specifications

Wetted Materials
 Epoxy, pH glass, porous HDPE
Range of Measurements
 0-12 pH
Pressure Maximum
 50 Deg. C/100psig
Temperature Range
 0 - 50 Deg. C
Speed of Response
 95% in 5 seconds
Maximum Suggested HF%
 2% v/v


HF Resistant Laboratory pH Electrodes Ordering Information
The HF models of these electrodes are available for our in-line, submersion and insertion (wet tap) models as follows:

Sensors
S350CDHF

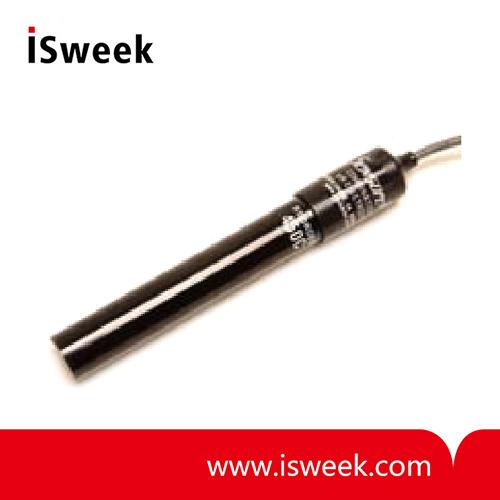

 Epoxy body, 150mmL x 12mm OD, 30 in cable
S353CDHF

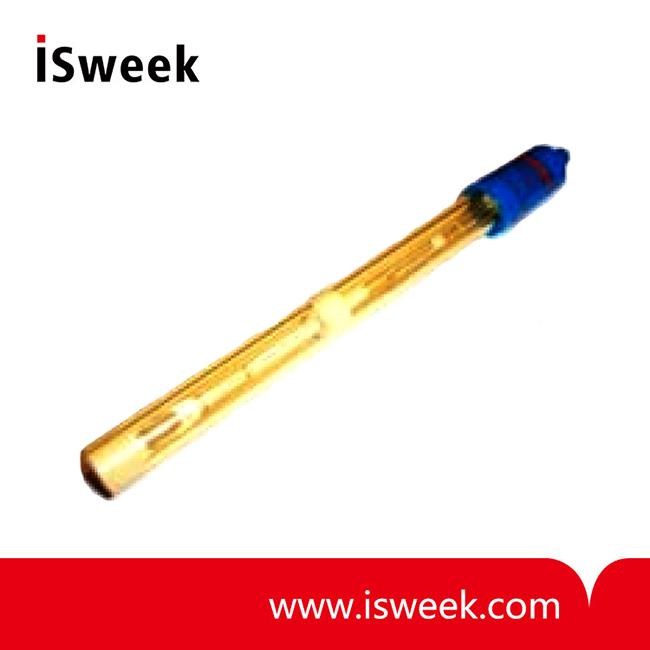

 Flat surface KYNAR submersion pH electrode
S354CDHF
 Flat surface CPVC submersion pH electrode with protective tip
S450CDHF
 Flat surface CPVC side stream pH electrode
EXT Cable DIN-EL
 Ext cable for models with DIN cap (S353CDHF, S354CDHF)
