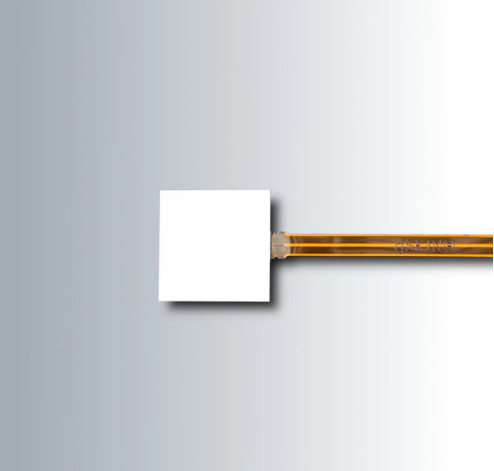

Heat Flux Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    gSKIN-XI

  • Data Sheet

  • Package

    Original packaging

  • Specs

    gSKIN-XI

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

1.Heat Flux Sensor - gSKIN-XI Descriprion:

    Our big size heat flux sensor for superior accuracy and responsiveness. Available both without and with connector.



2.Heat Flux Sensor - gSKIN-XI Features:

• Ultra-high resolution of thermal energies and temperature differences.

• Low invasiveness and thickness.

• Models with connector compatible with all gSKIN DLOG Data Loggers.

• All sensors with conductive heat flux calibration cohering to ISO 8301.



3.Heat Flux Sensor - gSKIN-XI Applications:

    R&D, thermal optimization, energy efficiency, industrial monitoring of thermal properties.



4.Heat Flux Sensor - gSKIN-XI Technical parameters:

Product

gSKIN XI

Detector Type

Thermoelectric

Surface Material (Sensing Area)

Aluminum

Sensing Dimensions (mm)

18.0 x 18.0 x 0.5

Heat Flux Range Min / Max [kW/m²]

-150 / 150

Noise Equivalent Heat Flux per area [W/m²] / absolute [μW]

0.02 / 4.6 (Experimentally evaluated values under optimal steady state conditions).

Heat Flux Resolution per area [W/m2] with gSKIN® DLOG / absolute [μW]

0.02 / 5.7 (Guaranteed minimum heat flux resolution using the gSKIN® DLOG-4219).

Response Time (0-95%) [s]

0.7 (Refers to the heat flux measurement).

Min. /Avg. Sensitivity (S) [μV/(W/m²)]

35.0 / 65.0 (Only a reference point).

Max. Compressive Force when clamped [kgf]

< 32

Electrical Resistance [Ohm]

< 400

Thermal Conductivity [W/(m*K)]

∼1.3

Linearity with Power [±%]

1

Operating Temperature Range Min/Max [°C]

-50 / 150

Calibration Accuracy [±%]

3

Calibration Temperature Range Min/Max [°C]

-30 / 70 (The sensitivity increases / decreases as the temperature goes above / below 22.5°C).

Temperature Dependence of S [%/°C]

0.25

Homogeneity [±%]

1 (Position dependent signal change across sensing area).

Cable Length (c) [cm]

100
