Product Description

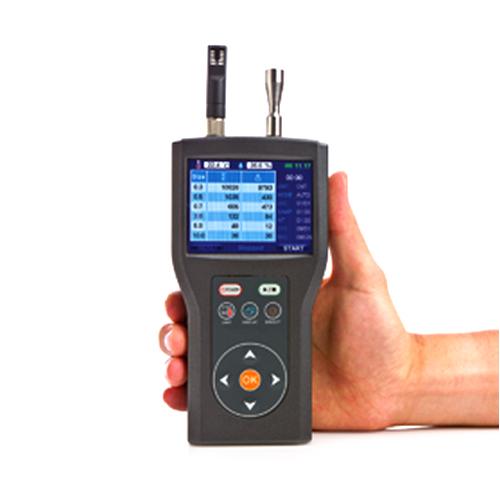

Handheld Particle Counter
Model P611

The P611 handheld particle counter measures 0.3 µm to 10.0 µm with a flow rate of 0.1 CFM (2.83 LPM).

Only 1.26 lb (0.57 kg), user-friendly and easy to configure, this handheld particle counter displays up to 6 size channels as well as (optional) temperature and relative humidity on its 3.5" color LCD display.

The P611 stores 10,000 sample records that can be viewed on the unit or on a computer via USB cable. The P611 complies with ISO 21501-4 and includes a two-year warranty. With excellent quality and reliable performance, the Airy Technology P611 is the best solution for professionals who validate ISO cleanrooms (Class 5 - 9) or investigate indoor air quality matters.

P611 Handheld Particle Counter Features & Benefits
• Measures 0.3 µm to 10.0 µm
• 0.1 CFM (2.83 LPM) flow rate
• Measures 6 channels of simultaneous data
• Weighs only 1.26 lb (0.57 kg)
• Long life laser diode
• USB output
• Removable and rechargeable AA batteries
• Includes carrying case, battery charger and download software
• Stores up to 10,000 sample records and 999 sample locations
• View data recorded on-screen or via computer
• (Optional) Temperature & Humidity Probe
• Large color LCD display
• Concentration limit of 4,000,000 per ft³
• Complies with ISO 21501-4 and JIS B9921 standards
• Reports ISO 14644-1 and EU GMP
• Lightweight high-impact injection molded plastic enclosure
• Easy to clean and wipe down
• Internal audible alarm
• 2 year limited warranty


P611 Handheld Particle Counter Specifications

Size Range
 0.3 -10.0 µm
Channel Sizes
 Standard: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 µm
Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Standard: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0 µm
Standard: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm
Optional: additional size channels available
Counting Efficiency
 50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS)
Concentration Limits
 4,000,000 particles/ft3 at 5% coincidence loss
Light Source
 Long life laser diode
Zero Count Level
 <1 count / 5 minutes (per JIS B9921)
Flow Rate
 0.1 CFM (2.83 LPM)
Flow Rate Control
 Automatic flow control
Calibration
 NIST traceable
Sample Probe/Tubing
 Isokinetic sampling probe and probe for tubing
Sampling Modes
 Manual, automatic, ISO1 , GMP2 , cumulative/differential, count/concentration
Reports
 ISO 14644-1 and EU GMP
Sampling Time
 1 second to 99 minutes 59 seconds (configurable)
Sampling Frequency
 1 to 9999 cycles or continuous (configurable)
Sample Output
 Internal HEPA filter
Vacuum Source
 Internal pump
Communication Interface
 USB
Data Storage
 10,000 sample records
Security
 2-level password protection
Alarm
 Counts, low battery, flow and laser status
Display
 3.5" (8.9 cm) 320 x 240 Color LCD
Power
 DC 5V 1A (Mini USB TYPE-B)
Battery
 Removable AA Ni-MH
Environmental Sensors
 Optional temperature/humidity probe
Dimensions (L x W x H)
 7" x 3.5" x 1.9" (17.8 cm x 9 cm x 4.7 cm) does not include probes
Weight
 1.26 lb (.57 kg)
Standards
 ISO 21501-4 and JIS B9921
Warranty
 2 year limited warranty
Operating Conditions
 5 to 35°C, 20% to 95%RH non-condensing
Storage Conditions
 -20 to 50°C, Up to 98%RH non-condensing
Included Accessories
 Operating manual on USB Key, AC adapter, isokinetic inlet, probe for tubing, USB
cable, purge filter, data download software, 4 x AA batteries with charger, calibration
certificate, & carrying case
Optional Accessories
 Temperature and relative humidity probe

1 ISO 5-9 at 0.3-5.0 µm excluding ISO 5 at 5.0 µm
2 GMP A-C in operation, A-D at rest
