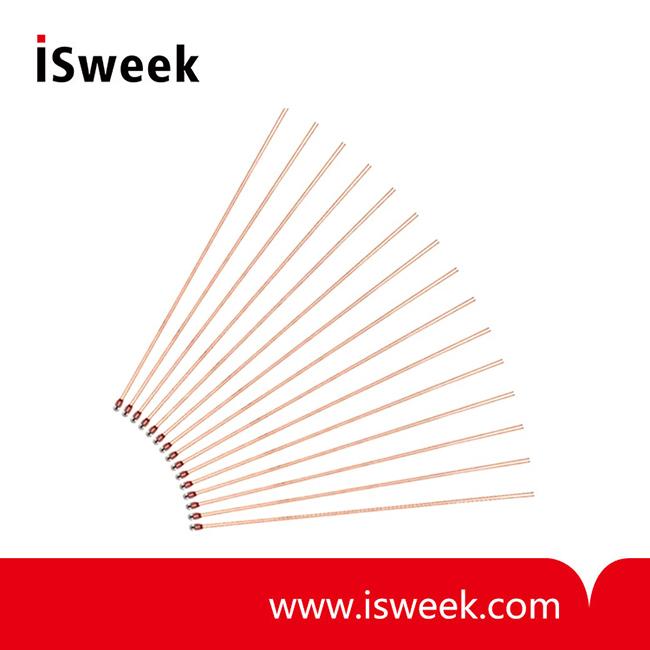

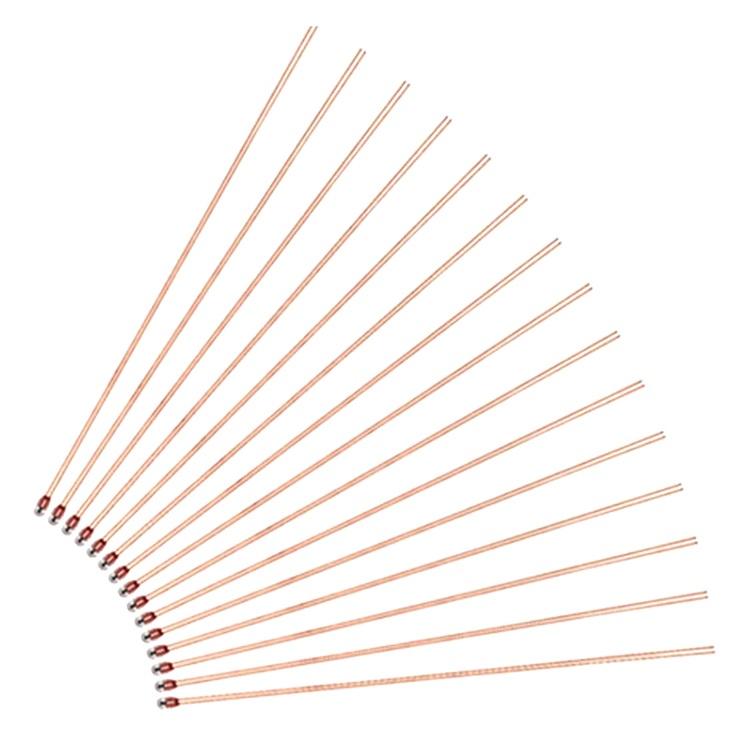

Glass-sealed NTC Thermistor Series Temperature Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MF5D

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MF5D

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

MF5D Glass-sealed NTC Thermistor Series Temperature Sensors Features

• Small and high sensitive
• Responsive within 3 seconds
• Stable and reliable for its performance, and high-percision
• Farily consistent and easily replaceable



MF5D Glass-sealed NTC Thermistor Series Temperature Sensors uses
• Precision-based temperature sensors
• Temperature compensation for circuitries
• Temperature measurement and control circuitries



Thermistors' scope
• Home appliances
• Automotive electronics
• Quick fixing tone sensors used for photocopy machines,printers
• Contactless sensors
• Medcial devices
• Telecommunication and industrial equipment


MF5D Glass-sealed NTC Thermistor Series Description of Product Types and Specifications


MF5D Glass-sealed NTC Thermistor Series Temperature Sensors Key Technical Parameters

 Parameters
  Parameter range
  Test conditions
 R25 (nominal resistance value)
  5kΩ ~ 500kΩ
  At a constant temperature 25 ℃± 0.05 ℃
 The premittible tolerance of R25 (%)
  ± 1, ± 2, ± 3, ±5
  At a constant temperature 25 ℃± 0.05 ℃
 B25/50 (material coefficient)
 (thermal-sensitivity index)
  3000 ~ 5000K
  At a constant temperature 25 ℃± 0.05 ℃
 At a constant temperature 50 ℃± 0.05 ℃
 The premittible tolerance of B25/50
  ± 1, ± 2
  At a constant temperature 25 ℃± 0.05 ℃
 At a constant temperature 50 ℃± 0.05 ℃
 δ(dissipation coefficient)
  1.5mw/ ℃
  In still air
 T(thermal time constant)
  ≤ 5S
 TA(working temperature)
  -40 ℃ ~ +250℃
 PN(nominal power)
  50 mw
  At a working temperature
