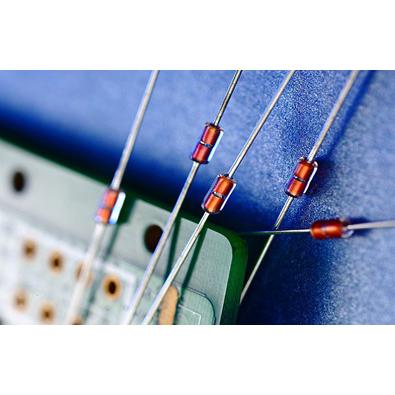

Glass-Sealed Diode NTC Thermistor Series Temperature Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MF58

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MF58

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

MF58 Glass-Sealed Diode NTC Thermistor Series Temperature Sensors Features

• Glass sealed packaging with firm structure and good heat resistance, applicable in severe environment.
• High precision resistance and B values high reliability and stability.
• Fast response and high sensitivity.
• Good interchangeability, good consistency, high performance/price ratio.
• Small size and light weight, suitable for auto and mass production.


MF58 Glass-Sealed Diode NTC Thermistor Series Temperature Sensors Applications
• Temperature measurement.
• Temperature control.
• Temperature compensation.


MF58 Glass-Sealed Diode NTC Thermistor Series Temperature Sensors Applications
• Air conditioner (heat and cool) and related equipment.
• Temperature measurement and control and thermal protection circuits in various family appliances, such as air conditioner, refrigerator, electromagnetic oven, bread toaster, bake oven, electric roaster, microwave oven, electric fan, soybean milk maker, electric water heater, rice cooker, sterilizing cabinet, water dispenser and lighting appliances .
• Temperature measurement and control circuit in the equipment for industrial and agricultural, medical, meteorological purpose, environmental protection and food processing.
• Automatic office appliances.
• Temperature compensation circuits such as instrument and coils, automobile circuit, integrated circuit module, transistor amplifying circuit, quartz crystal oscillator and thermocouple.


MF58 Glass-Sealed Diode NTC Thermistor Series Product Types and Specifications

(1) KPD — Abbreviations for KePengDa.
(2) MF — Negative temperature coefficient of thermistor.
(3) 58 — Temperature measurement type glass sealed thermistor.
(4) 104 — Nominal resistance of thermistor, e.g. 104 indicates that the nominal resistance of the thermistor is 10 x 104(Ω).
(5) J — Resistance error (precision) of thermistor, e.g. J indicates the nominal resistance error of the thermistor is ± 5%.
(6) 399 — B25/50 value of thermistor, e.g. 399 indicates the thermistors material factors B25/50 value is 399*10K.
(7) F — B25/50 error (precision) of thermistor, e.g. F indicates the thermistors B25/50 error (precision) is ± 1%.
Note: R25 precision: F (±1%), G (±2%), H (±3%), J (±5%), K (±10%).
          B25/50 precision: F (±1%), G (±2%), H (±3%).


MF58 Glass-Sealed Diode NTC Thermistor Series Temperature Sensors Main Technical Parameters

Parameters  Parameter range  Test conditions
 R25 (nominal resistance value)  500 Ω ~ 5 MΩ  Constant temperature 25 ℃± 0.05 ℃
 R25 Premissible variance (%)  ±1, ±2, ± 3, ±5, ±10  Constant temperature 25 ℃± 0.05 ℃
 B25/50 (material coefficient)
 (thermal-sensitivity index) 		 2500 ~ 5000K

 Constant temperature 25 ℃± 0.05 ℃

 Constant temperature  50 ℃± 0.05 ℃
 B25/50 value premissible variance(%)  ± 1, ± 2

 Constant temperature 25 ℃± 0.05 ℃

 Constant temperature  50 ℃± 0.05 ℃
 δ(dissipation coefficient)  ≥ 0.8 mw/ ℃  Static in still air
 T(thermal time constant)  ≤ 7S  Static in still air
 TA(working temperature)  -40 ℃ ~ +300 ℃
 PN(rated power)  50 mw  Within working temperature
