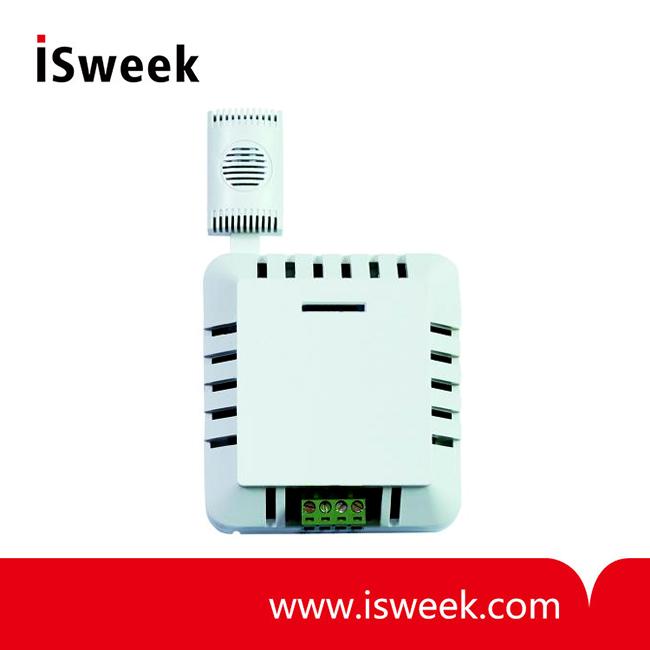

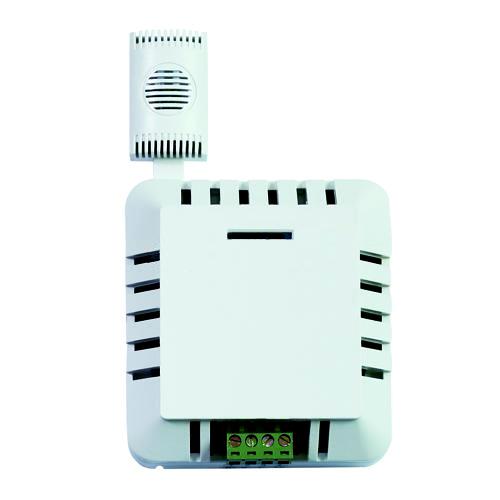

General Wall-mounted Temperature and Humidity Transmitter

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    JWSL-2

  • Data Sheet

  • Package

    Original packaging

  • Specs

    JWSL-2

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

JWSL-2 Temperature and Humidity Transmitter Introduction
It is designed sensor and  transmitter integrated, which can applied to the hvac level indoor environment temperature and humidity measurement.

JWSL-2 Temperature and Humidity Transmitter Use
The model JWSL-2 series product is a temperature and humidity transmitter. It converts the temperature and humidity of air to stand electrical signals (e.g. 4-20mA, 0-5VDC, RS-232/485) for auto control system or remote data acquisition system. It's extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.

JWSL-2 Temperature and Humidity Transmitter Characteristic
• Wall-mounted installation easily
• ±0.5°C and ±3.0%RH accuracy
• 4-20mA, 0-5Vdc, RS-232/485
• CE and ROHS certifications

JWSL-2 Temperature and Humidity Transmitter Performance Specifications
Power voltage
 24VDC (18-30V)
Accuracy (25°C)
 Temperature: ±0.5°C (0°C - 50°C)
Humidity: ±3.0%RH
Output
 Current two-wire 4ma to 20mA (Load <500Ω);
Voltage 0-5VDC (Load >1KΩ)
RS-485/RS-232
Response time
 <15s (wind speed >1m/s)
Long-term stability
 Temperature: <0.1°C/year,
Humidity: <1%RH/year
Operating environment
 -10°C ~ 60°C; 5%RH ~ 95%RH
Mounting dimension
 84mm x 90mm x 35mm (White Color ABS)

JWSL-2 Temperature and Humidity Transmitter Ordering Codes
