Product Description

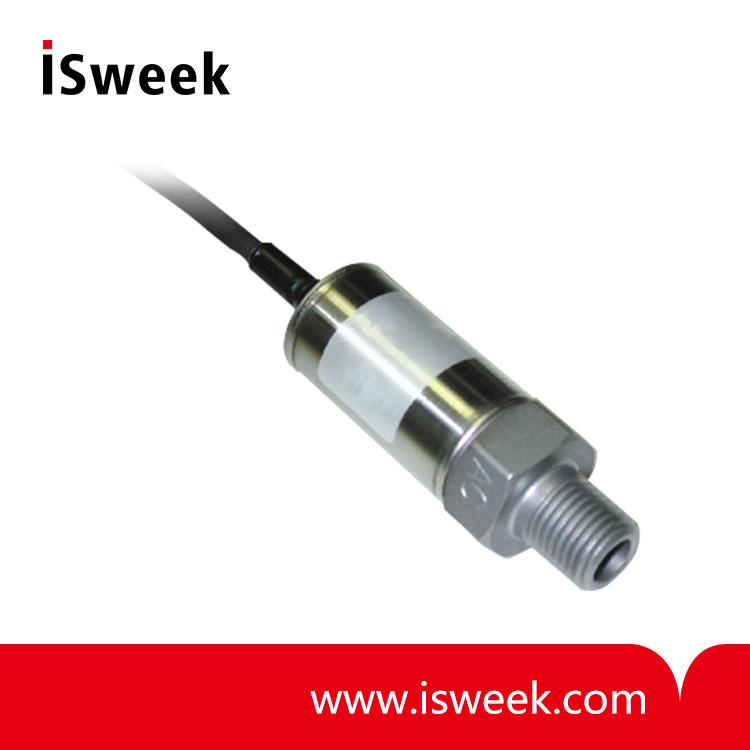

PTG 404 Series - General Purpose Pressure Transducer
The PTG 404 is a competitively priced, high quality all stainless steel, pressure sensor intended for use in the measurement of gases and liquids. It is suitable for automotive diagnostics tools, refrigeration, hydraulics, pneumatics and data loggers. The PTG 404 pressure sensor is designed specifically for applications with demanding price and performance requirements. This sensor offers both millivolt and high level outputs. The high strength sensing element is machined from a solid piece of stainless steel, resulting in construction that contains no silicone oil, welds or internal O-rings. Measurements are available in gauge pressure covering ranges up to 45,000 PSI.
PTG 404 Series General Purpose Pressure Transducer Features
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination
The PTG 404 is a competitively priced, high quality all stainless steel, pressure sensor intended for use in the measurement of gases and liquids. It is suitable for automotive diagnostics tools, refrigeration, hydraulics, pneumatics and data loggers. The PTG 404 pressure sensor is designed specifically for applications with demanding price and performance requirements. This sensor offers both millivolt and high level outputs. The high strength sensing element is machined from a solid piece of stainless steel, resulting in construction that contains no silicone oil, welds or internal O-rings. Measurements are available in gauge pressure covering ranges up to 45,000 PSI.
PTG 404 Series General Purpose Pressure Transducer Features
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination
PTG 404 Series General Purpose Pressure Transducer Specifications
|
Pressure Ranges |
25 to 45,000 PSI |
|
Accuracy |
±0.1% F.S, typical |
|
Material |
17-4PH Wetted Parts 304 SS Housing |
|
Temperature Range |
30º to 158º F - Compensated |
|
Output |
0.5-4.5 Vdc Ratiometric 1-5,1-6 Vdc, 10 mV/V or 4-20 mA |
|
Excitation |
5 Vdc, or 10-28 Vdc |
|
Safe Overload |
200% Over Capacity |
|
Burst Pressure |
5X or 50,000 PSI whichever is less |
|
Cable |
Specify Below |
|
AVAILABLE RANGES |
||
|
-14.7-25 (compound), 25, 50, 100, 200, 500, 1000, 2500, 5000, 10,000, 15,000, 20,000, 30,000, 45,000 PSI For Accuracy Specify the following: PTG 404 - .10% Amplified Pressure Connection: A = 1/4" Male NPT B = 1/8" Male NPT C = 1/4" Male BSPP E = 9/16" Male UNF [SAE6] F = 7/16”-20 Male UNF [SAE4] K = 7/16"-20 Female UNF [SAE4] M = 3/8"-24 UNF Male [SAE3] W= F250C Female Autoclave Pressure Units: B=Bar, K=Kg/cm2, P=PSI |
Outputs: 1= 0.5-4.5V ratiometric 2= 0-5V (3 wire) 3= 1-5V 4= 4-20mA 5= 0-10V (3 wire) 6= 1-6V G= 1-10V Wetted Material: 0=17-4PH 1=316 L 2=Inconel Electrical: A=2Ft, B=4Ft, C=6Ft, D=10Ft, E=Mini DIN 43650, F=Packard Metripack 150 3-Pin Conn. |
Order Code Example:
Failure State: |
