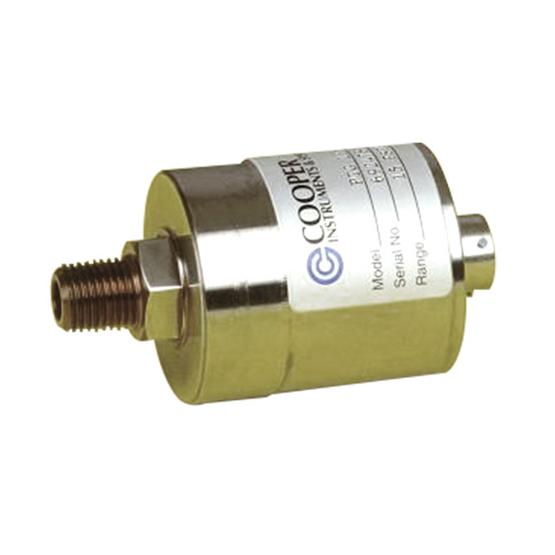

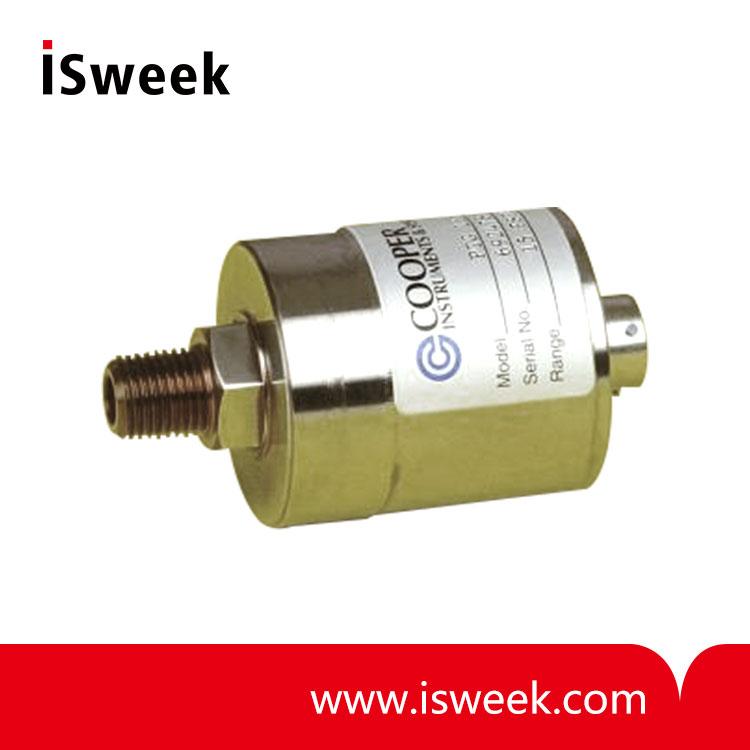

PTG 230 - General Purpose Pressure Transducer

The PTG 230 is designed as a general purpose industrial pressure transducer. Pressure ranges span from 0.5 to 60,000 PSIG. It has stainless steel construction and utilizes a complete four arm 350 ohm strain gage bridge. The PTG 230 uses standard gage design. The PTA 232 has an internally sealed 0 psia reference.

PTG 230 General Purpose Pressure Transducer Features
• Stainless Steel
• Many Options
• 0.5 TO 60,000 PSI
• Optional Amplified Output
• 0.25 Full Scale Accuracy

PTG 230 General Purpose Pressure Transducer Specifications

Pressure Ranges
 0.5 psig to 60,000 psig
Linearity
 ±0.15% F.S
Hysteresis
 ±0.10% F.S.
Repeatability
 ±0.05% F.S.
Material
 Stainless Steel
Temperature Range
 60˚ to 160˚ F
Output
 0.5 psig - 1mv/psig
1 psi to 2 psi - 1-2 mv/v
5 psig to 60,000 psig - 3mv/v
Bridge Rresistance
 350 ohm
Excitation
 10 Vdc
Safe Overload
 50% Over Capacity
Pressure Ports
 1-10,000 psig see chart
15,000 psig to 60,000 psig - 9/16-18UNF per AE F250-C for 1/4 OD
High Pressure Tubing
Cable
 As Required - mating conn. not incl. (PTO6A-10-6S)

PTG 230 PRESSURE RANGES
 D"
 L"
5
 2.25
 2.09
10, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750
 1.50 2.09
1000, 1500
 1.50 2.35
2000, 3000, 5000, 7500, 10,000
 1.50 2.39
15,000, 20,000, 30,000, 50,000, 60,000
 1.50 2.21
*Consult Cooper
