Gauge Pressure Sensor with Bridge Output
-
Price
Price on request ≥1piece
-
Model Number
SPD...G -
Data Sheet
-
Package
Original packaging -
Specs
SPD...G -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
• Commercial grade
• DIP version for high volume production
• Gauge or absolute pressure
• Resistive bridge technology
• Voltage or current excitation
SPD...G Gauge Pressure Sensor Applications
• Medical applications
• Blood pressure
• Portable Gauges
• Process control
• HVAC controls
SPD...G Gauge Pressure Sensor Product description

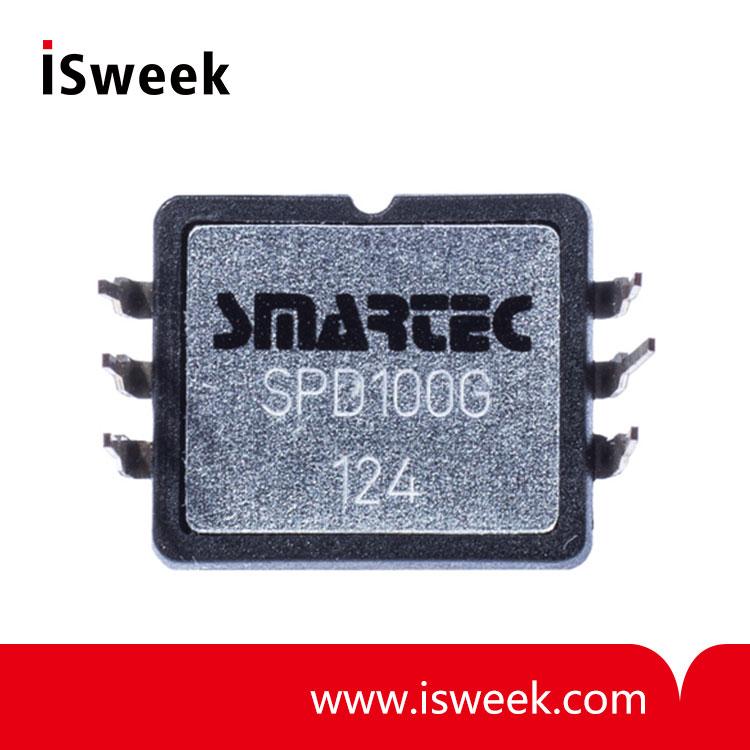

The Smart Pressure Device SPD series of pressure sensors are silicon based and encapsulated in modified plastic Dual In Line packages, to accommodate six pins for through-board printed circuit mounting.
The sensors come in two distinct types: Gauge and absolute. The gauge type merely measures the pressure with respect to the atmospheric pressure. The absolute type contains a reference vacuum chamber, which is formed on the die during manufacturing.
The output voltages of both types are proportional to the pressure that is measured.
Various pressure ranges are available. On request, other ranges and encapsulations can be supplied. Please contact our sales department for more information.
Because of its bridge resistance value, the SPD pressure sensor is especially suited for use in combination with the Universal Transducer Interface (UTI03), which gives an easy and very accurate interface to a digital environment.
SPD...G Gauge Pressure Sensor Performance Characteristic
(Measured @5V excitation and 25 °C.)|
Parameter |
Min |
Typ |
Max |
Units. |
|
Excitation voltage |
0 |
5 |
10 |
V |
|
Excitation current |
|
1.5 |
3 |
mA |
|
Offset |
-50 |
0 |
50 |
mV |
|
Linearity |
-0.3 |
±0.1 |
0.3 |
%FS |
|
Bridge Impedance |
2.7 |
3.3 |
4.0 |
KΩ |
|
TC Span (0-50°C) |
-27 |
-22 |
-17 |
%FS/100°C |
|
TC Offset (0-50°C) |
-7 |
|
7 |
%FS/100°C |
|
TC bridge resistance |
23 |
28 |
33 |
%FS/100°C |
|
Hysteresis |
|
|
0.15 |
% of range |
|
Repeatability 1) |
|
±0.2 |
±0.5 |
FSO |
|
Response time (10-90%) |
|
1 |
|
ms |
|
Pressure overload |
|
|
1.35 |
Pa (*105) |
|
Operating temperature |
-20 |
|
85 |
°C |
|
Storage temperature |
-30 |
|
125 |
°C |
The below stated differences yield for the SPD005G and SPD100G only
|
For SPD005G and SPD100G only |
||||
|
Offset |
-20 |
0 |
20 |
mV |
|
Bridge Impedance |
4 |
5 |
6 |
KΩ |
1) measured after 1,000 temp. cycles 0 - 70 °C, 106 pressure cycles (10-90% FS)
|
Type |
Range(*105 Pa) |
Min |
Typ(FS) |
Max |
Unit |
|
015A |
0 - 1 abs |
90 |
130 |
175 |
mV |
|
005G |
0 - 0.350 |
40 |
60 |
80 |
mV |
|
015G |
0 - 1 |
100 |
140 |
175 |
mV |
|
030G |
0 - 2 |
120 |
160 |
200 |
mV |
|
100G |
0 - 6.5 |
70 |
100 |
130 |
mV |
1 Pa = 0.145* 10-3 psi or 1 PSI = 6.89476*103 Pa
1 Bar = 105 Pa = 105 N/m2
SPD...G Gauge Pressure Sensor Ordering information
|
Part no. |
Pressure range |
|
SPD005G |
0- 0.35 105 Pa (Gauge) |
|
SPD015G |
0- 1.0 105 Pa - |
|
SPD030G |
0- 2.0 105 Pa - |
|
SPD100G |
0- 6.5 105 Pa - |
|
|
|
|
SPD015A |
0- 1.0 105 Pa (Absolute, SOIC6) |
|
Other pressure ranges on request |
|
