Product Description

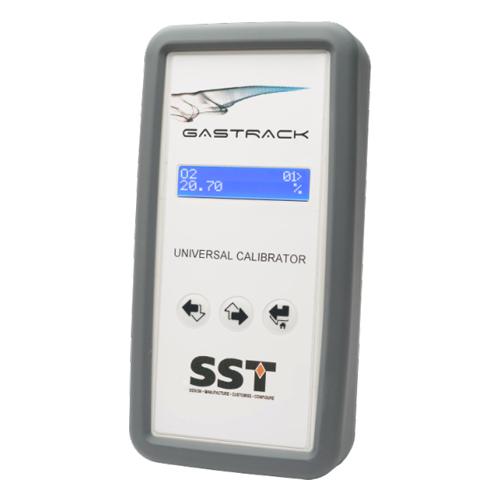

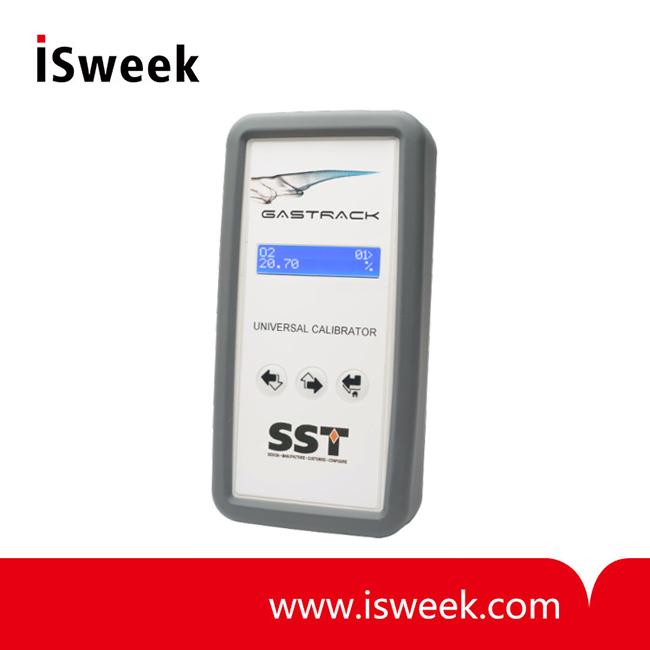

Gas Track Universal Calibrator


Universal Calibrator is a hand-held device that simplifies calibration and configuration: no need for multimeters or screwdrivers.


U-CAL Gas Track Universal Calibrator FEATURES
• Intuitive menu structure makes configuration and calibration quick and simple - no more meters or screwdriver adjustments!
• Powered by the product being calibrated
• Compact, lightweight design
• LCD screen - alpha numeric display
• Easy to clean soft-touch buttons

U-CAL Gas Track Universal Calibrator APPLICATIONS
• Display and configuration:
   • Sensor status and calibration
   • Communication settings
   • Analogue output measurements
   • Alarm status and thresholds
• Hardware testing
• Can be used with all GasTrack products

U-CAL Gas Track Universal Calibrator TECHNICAL SPECIFICATIONS
Temperature rating
 -10 to +60°C
Construction
 ABS (UL94-V0) enclosure with protective silicone cover
Seal rating
 IP40
Supply voltage
 Powered by the product being calibrated
Current consumption
 100mA maximum
Cable connector
 9-pin D-type connector
Display
 LCD screen alpha numeric 16 character x 2 line blue screen with white text
Keypad
 3 x soft-touch buttons

U-CAL Gas Track Universal Calibrator ORDER INFORMATION
Specify the part number below when ordering the Universal Calibrator.
U-CAL

Cables available separately. Specify the part number that corresponds to the option you require - include the U-CAL prefix.

Part Number
 Connector / Cable Assignment
U-CAL-UGT
(Universal Gas Transmitter Probe only)
8-way, M12 T-connector
(male to female)
U-CAL-IDC
(All other Gastrack products)
8-way, IDC female connector
