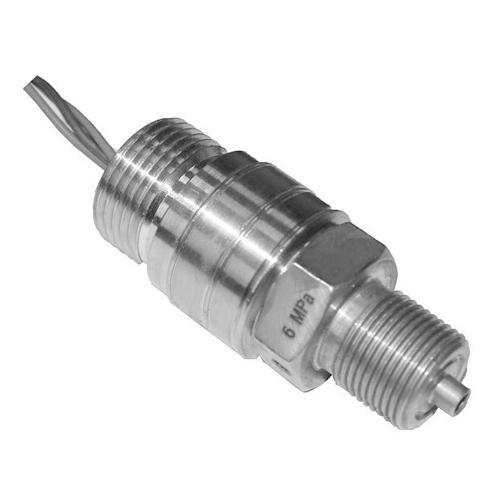

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃

MIDA-MG-70

Features:

pressure range 0~160MPa

Operating temperature range (-40℃~+120℃)

high accuracy, high stability

wear resistance, impact resistance and anti-corrosion

Application:

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment

industrial process pressure control

high precision digital pressure gauge

Specification

Applications	Industrial instrumentation & process control systems
Measured medium	Liquids and gases compatible with titanium alloys and stainless steels
Pressure range, MPa	0-0,006… - 0-160
Accuracy (comb. L.H.R), no more than, ±%	0,1 (0,2) of output signal variation range
Zero output (at temperature of 20℃), mV/V	± 0,2 with accuracy 0,1%; ± 0,3 with accuracy 0,2%; ± 0,5 within pressure range 0-0,006
Output range, mV/V	5 ± 0,2 with accuracy of 0,1%; 5 ± 0,3 with accuracy of 0,2%; 3± 0,2 within pressure range 0-0,01 MPa 1,5 ± 0,2 for 0-0,006 MPa range with accuracy 0,1%; 1,5 ± 0,3 for 0-0,006 MPa range with accuracy 0,2%
Operating temperature range, °С	-40 ...+120
Compensation temperature range, °С	-40 ...+120
Additional temperature error in compensated temperature range, % of zero output, no more than	2 with accuracy of 0,1%; 3 with accuracy of 0,2%; 3 for 0-0,006 MPa range with accuracy of 0,1%; 4,4 for 0-0,006 MPa range with accuracy of 0,2%
Supply voltage, V	5-15 DC
Overpressure, no more than	2 Pnom for ranges from 0-0,006 to 0-2,5 MPa; 1,5 Pnom for ranges from 0-4 to 0-60 MPa; 1,25 Pnom for ranges from 0-100 to 0-160 MPa
Insulation resistance	Not less than 100 MOhm at voltage of 500 V DC

Overall and mounting dimensions
