Product Description

GS101201 - GS101202 Sensors

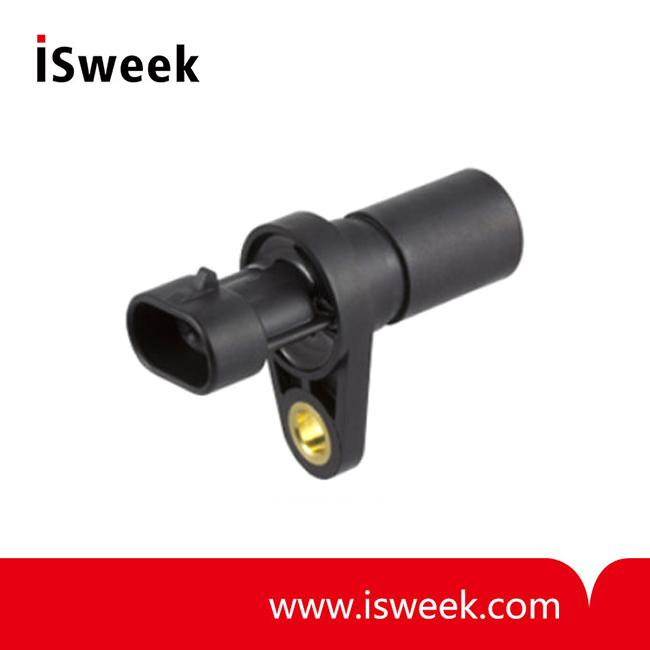

Flange mount gear tooth speed sensor

GS101201-GS101202 Series Gear Tooth Speed Sensors Description
The GS101201-GS101202 series gear tooth speed sensors are Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking output current.

GS101201-GS101202 Series Gear Tooth Speed Sensors Features
• From near zero speed up to 15 kHz sensing capability
• Plastic flange-mount housing
• Compatible with unregulated power supply
• RoHS compliant
•  IP67
• Typical air gap of 1.5 mm*

GS101201-GS101202 Series Gear Tooth Speed Sensors Typical Applications
• Speedometers
• Anti-lock braking systems
• Exercise equipment
• CNC machine tools

GS101201-GS101202 Series Gear Tooth Speed Sensors Environmental Specifications
Vibration
 Sinusoidal, 15 g max from 40 Hz to 2 kHz
Mechanical Shock Resistance
 50 g
Maximum Speed Detection
 15 kHz
Operating Temperature
 -40 ⁰C to 125 ⁰C (-40 ⁰F to 257 ⁰F)
Storage Temperature
 -40 ⁰C to 125 ⁰C (-40 ⁰F to 257 ⁰F)
Ingress Protection
 IP67

GS101201-GS101202 Series Gear Tooth Speed Sensors Electrical Specifications
Operating Supply Voltage
 5 to 24 VDC
Maximum Input Voltage
 30 VDC
Maximum Reverse Voltage
 24 VDC
Supply Current
 3 mA typ., 6 mA max
Output Sink Current
 20 mA max
Recommended Pull-Up Resistor
 See chart

GS101201-GS101202 Series Gear Tooth Speed Sensors Mechanical Specifications
Housing Material
 Glass Reinforced Thermoplastic
Maximum Installation Torque Limit
 5.65 Nm (50 in lb) on threads
Operating Air Gap / Sensing Distance*  1.5 mm (0.06")
* With recommended target type; see drawing
 1.5 mm (0.06")
Sensor Orientation
 Not sensitive
Possible O-ring size
 AS568A-114 (varies with application)

Products
Part Number
 Leads
 Connector**
GS101201
Delphi Metri-Pack 150
GS101202
 20 AWG x 1 m
**Mates to Delphi connector 12162280
