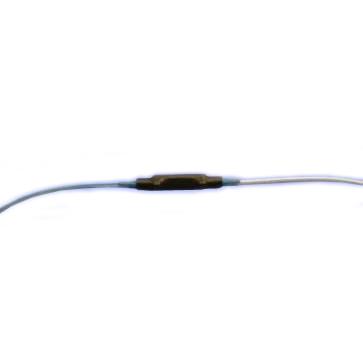

Fiberoptic Electric Field Sensor (Straight Version)

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    EOFS-xx1 Series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    EOFS-xx1 Series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

EOFS-xx1 Series Fiberoptic Electric Field Sensor Product Description
This Electric-field sensor, based on EO effect, is probed by a laser through optic fiber and packaged only with dielectric components. It is ideally suitable to remotely and non-intrusively measure electric fields and microwave radiation up to Gigahertz range.

EOFS-xx1 Series Fiberoptic Electric Field Sensor Features
• No metal parts
• Passive
• Miniature
• Optical fiber readout

EOFS-xx1 Series Fiberoptic Electric Field Sensor Applications
• Microwave pulse measurement
• Electric field measurement

EOFS-111 Series Fiberoptic Electric Field Sensor Performance Specifications - High Frequency
High Frequency Sensor
 Min
 Typical
 Max
 Unit
Frequency
 DC
7.0
 GHz
Sensitivity
8
mV/m-Hz 1/2
Maximum detectable E-field

200 kV/m
Damage E-field

5 MV/m
Package Dimension**
 6.0 x 6.0 x 40.0
 mm
* Defined by measuring with a 1550nm laser at 20mW and 10 MHz.
** High frequency sensor

EOFS-121 Series Fiberoptic Electric Field Sensor Performance Specifications of Low Frequency
Low Frequency Sensor
 Min
 Typical
 Max
 Unit
Frequency
 DC
400 MHz
Sensitivity*
0.8
mV/m-Hz1/2
Maximum detectable E-field

1 kV/m
Damage E-field

5 MV/m
Package Dimension
 8.0 x 8.0 x 60.0
 mm

* Defined by measuring with a 1550nm laser at 20mW


EOFS-xx1 Series Fiberoptic Electric Field Sensor Ordering Information
EOFS-  ☐☐
 1 ☐
 ☐
 1 1 ☐
 ☐

Type Configurarion Package
Fiber Type
 Fiber Length Connector

11=High Freq
12=Low Freq

1: Transmissive

1: Standsrd

0: special

Bare fber=1
900um loose
tube=3
Special=0

Panda PM=1
For input
Special=0

MM 62.5/125=1
For Output
Special=0

0.25m=1
0.5m=2
1.0m=3
Special=0

None=1
FC/PC=2
FC/APC=3
SC/PC=4
SC/APC=5
ST/PC=6
LC=7
Special=0
