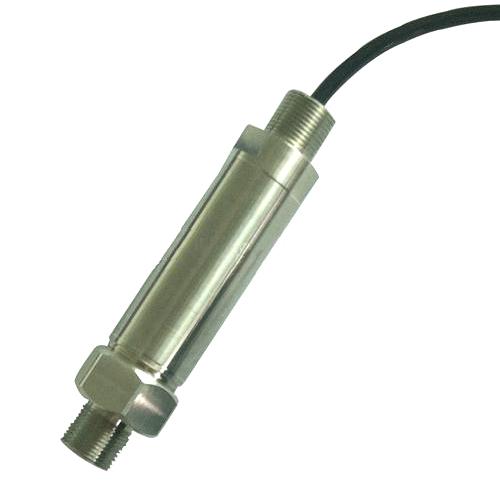

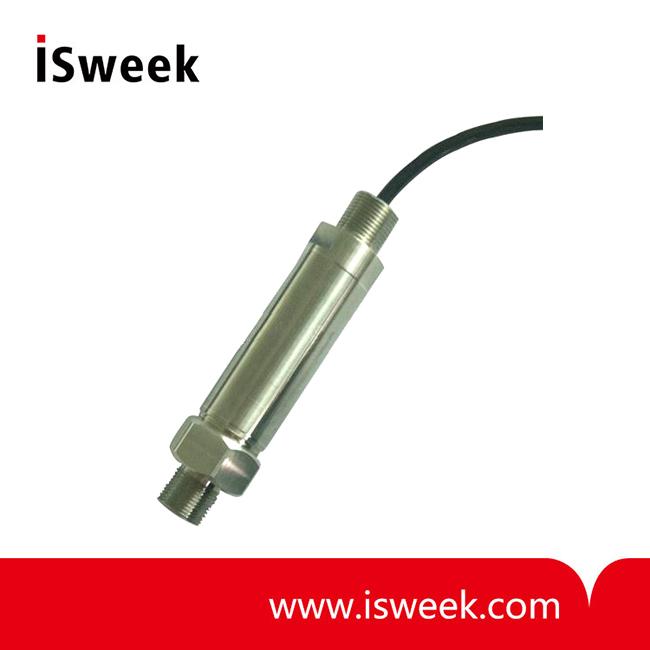

Explosion Proof Pressure Transmitter
-
Price
Price on request ≥1piece
-
Model Number
JYB-KGH -
Data Sheet
-
Package
Original packaging -
Specs
JYB-KGH -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
JYB-KGH Explosion Proof Pressure Transmitter Characteristic
• Imported diffusion silicon core , suitable for precision measurement of different medium and different temperature stress
• Explosive-proof design, full stainless steel laser welding, anticorrosive, shockproof, waterproof
• Through electrical equipment thermal stability and hot and humid experiment of class one
• Strong resistance of overload ability, impact and interference
• Reverse polarity, anti surge, and over-voltage over-current protection
• Long working life, high reliability
• Coal mining explosive-proof certification
JYB-KGH Explosion Proof Pressure Transmitter Use
Methane and coal mine's pressure measurement; pressure system control of mine fan, diesel locomotive, ventilation tunnel, mine pumping station equipment and so on; used for high purity hydrogen or containing a high percentage of hydrogen mixture gas
JYB-KGH Explosion Proof Pressure Transmitter Parameters
• Imported diffusion silicon core , suitable for precision measurement of different medium and different temperature stress
• Explosive-proof design, full stainless steel laser welding, anticorrosive, shockproof, waterproof
• Through electrical equipment thermal stability and hot and humid experiment of class one
• Strong resistance of overload ability, impact and interference
• Reverse polarity, anti surge, and over-voltage over-current protection
• Long working life, high reliability
• Coal mining explosive-proof certification
JYB-KGH Explosion Proof Pressure Transmitter Use
Methane and coal mine's pressure measurement; pressure system control of mine fan, diesel locomotive, ventilation tunnel, mine pumping station equipment and so on; used for high purity hydrogen or containing a high percentage of hydrogen mixture gas
JYB-KGH Explosion Proof Pressure Transmitter Parameters
| Measuring range | any range within 0～20MPa, 5kPa is the smallest range |
| Power supply | DC 24V (12V～32V) |
| Load capacity |
current mode ≤500Ω (DC 24V) voltage mode ≥3KΩ |
| Accuracy class | grade 0.2 (range from 70kPa to 5MPa) |
| grade 0.5 (range from 5kPa to 70kPa; 5 MPa to 20 MPa) | |
| Medium temperature | -20°C～60°C |
| Environment temperature | -20°C～60°C |
| Response time | ≤ 50ms |
| Hysteresis and repeatability | ± 0.2％F.S |
| Long-term stability | ± 0.5％F.S/y |
| Nonlinear | ± 0.2％F.S |
| Over load pressure | two times of range |
| Electrical connection | cable |
| Process connection | M20 x 1.5 and others |
| The external parts material | Ordinary stainless steel/316stainless steel |
| Ex mark | ExdI Mb |
| Ex No. | CNEX13.2772 |
